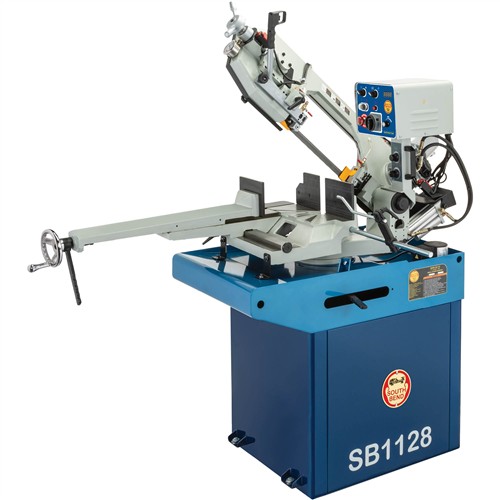

SB1128 7" x 9-3/8" 1 HP Metal-Cutting Bandsaw

Horizontal swivel-mast bandsaw designed for professional metal shops.

With a 1 HP motor and variable speed, this heavy-duty South Bend Tools metal-cutting bandsaw offers power and control for consistently perfect cuts.

Its robust swivel mast let you adjust the blade angle from 45° left and 60° right without repositioning your workpiece.

And, with other features such as a cutting fluid system, dual-position vise, and automatic blade shut-off, this bandsaw is ready for your manufacturing, automotive, and specialty projects.

FEATURES:

• Adjustable Downfeed Speed: Get exacting control on every cut for optimum performance.
• Stand with Integrated Water Pan: Collects chips and excess cutting fluid to keep your shop efficient, clean, and safe.
• Swivel Mast: Left-to-right movement accommodates angled cuts without repositioning material.
• Built-In Cutting Fluid System: Continuous blade lubrication reduces friction and heat for improved cuts and extended blade life.
• Dual-Position Vise: For clamping materials at different angles to maximize cutting precision.
• Adjustable Work Stop: Allows repeat cuts of the same length for production runs.
• Double Ball-Bearing Blade Guides: Ensure precise blade alignment and support during cuts.
• Centralized Control Panel: All controls in one convenient spot for simple access and essential safety.
• Feed Support Bracket: Easily handle long workpieces for stable, precise cuts.
• Automatic Blade Shut-Off: Stops the blade automatically at the end of a cut to prevent overrun and reduce wear.
• 2-Year Warranty: The reliability of South Bend machines is backed by a 2-year warranty.

SPECIFICATIONS:

• Main Motor: 1 HP, 220V, single-phase, 3A
• Pump motor: 1/8 HP
• Blade size: 97" x 1"
• Blade speeds: Variable, 55-255 FPM
• Max. cutting height: 7"
• Head swivel: Left 45°, Right 60°
• Cutting capacities:
  • 90° Round 8-3/4"
  • 90° Rectangular 7" x 9-3/8"
  • 45° Round 5-5/8"
  • 45° Rectangular 4" x 5-5/8"
  • 60° Round 2-1/2"
  • 60° Rectangular 3-15/16" x 2-1/2"
• Vise jaws: 5-1/2" H x 9-3/4" D
• Floor to table height: 38-3/8"
• Dimensions: 59" W x 72-1/2" D x 73" H
• Footprint: 33" x 24"
• Approx. shipping weight: 722 lbs.

This metal bandsaw offers the durability and safety you need for continuous metal cutting.

Get consistent results with the reliability of South Bend. Purchase the SB1128 7" x 9-3/8" 1 HP Metal-Cutting Bandsaw today!

The SB1128 manual was written by our U.S.-based Technical Documentation Department, and the South Bend Customer Service and Support Teams are U.S.-based.

Made in an ISO 9001 factory
