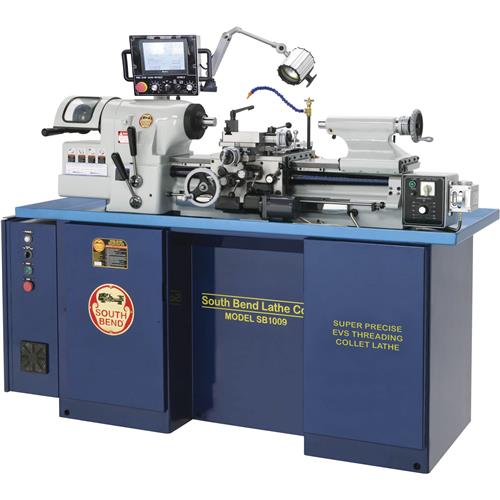

SB1009 South Bend Super Precision Digital Threading Collet Lathe

This SB1009 Super Precision Digital Threading Collet Lathe features a super precision digital threading control, which replaces the traditional threading gearbox with a microprocessor-controlled, servo-driven leadscrew.

Simply type in the desired thread pitch on the numeric pad of the touchscreen LCD panel and start the threading cycle.

This system controls and synchronizes the main spindle rotation on 2-axis feed rate to produce a precise threading cycle for any given inch or metric thread pitch.

The spindle is hardened and ground then mounted on high-precision pre-loaded angular contact bearings for sustained precision and rigidity. Spindle runout is within 0.00125 mm (50 millionths of an inch.)

The manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete-and-easy to read manual provides full instructions on how to assemble and maintain your lathe.

All South Bend lathes come with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The South Bend Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the lathe are available online and shipped from the South Bend parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Spindle motor: 3 HP, 220V, 3-phase, 10A
  • Coolant motor: 1/8 HP
  • Feed inverter motor: 1/2 HP
  • Swing over bed: 11"
  • Distance between centers:18"
  • Swing over cross slide: 5.98"
  • Swing over saddle: 9.05"
  • Cross slide travel: 5.98
  • Compound travel: 3"
  • Carriage travel: 25"
  • Spindle nose: 5-C (10°)
  • Spindle bore: 1.25"
  • Spindle taper: 4°
  • Spindle speeds w/ 5-C: 50 - 4000 RPM
  • Spindle speed w/ 6" 3-Jaw Chuck: 50 - 3000 RPM
  • Tailstock taper: MT #2
  • Tailstock travel: 3.75"
  • Tailstock barrel diameter: 1.358"
  • Inch threads: 3.175-500 TPI
  • Metric threads: 0.55-6.55 mm
  • Number of longitudinal feeds: Variable
  • Longitudinal feed range: 0.3125"-7"/min
  • Number of cross feeds: Variable
  • Cross feed range: 0.1875"-4"/min
  • Footprint: 59" W x 25" D
  • Dimensions: 72-7/8" W x 29-1/2" D x 66-15/16" H
  • Approximate shipping weight: 2645 lbs.

    FEATURES:

    • Spindle runout within 50 millionths of an inch
    • Infinitely variable spindle speed
    • 3 HP motor with current vector inverter drive for increased low-end torque
    • Independent variable feeds for carriage and cross slide
    • Turcite B Slideway bearing surface between carriage and bed
    • Mitutoyo linear scales on X and Z axis
    • Delta interface display monitor
    • Automatic threading stop and control
    • High-quality Japanese Yaskawa Inverter
