Item# G0884 Model# G0884

Grizzly G0884 - 13" CNC Lathe with Auto Tool Changer

$23,175.00
+$795.00  Freight
+$0.00  Oversize

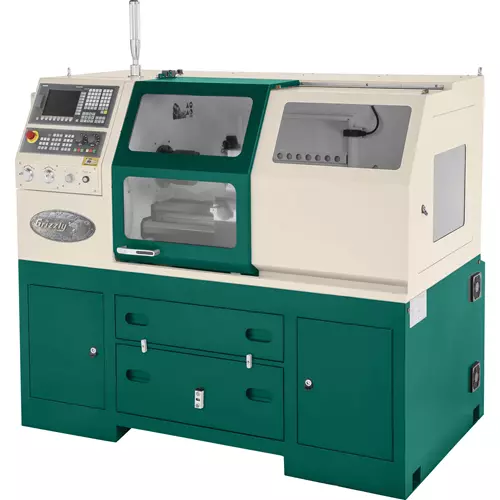

G0884 13" CNC Lathe with Auto Tool Changer

Take your shop's turning capabilities to the next level with the G0884 13" CNC Lathe with Auto Tool Changer.

The G0884 is driven by a powerful 4 HP motor capable of spinning the A2-4 precision spindle at speeds from 30–4000 RPM.

Decrease cycle times thanks to the 6-position automatic tool changer and rapid speeds over 300 inches per minute.

The tailstock features an MT3 taper and 4-1/2" of travel.

Dramatically increase tool life thanks to the built-in 14-gallon coolant tank and flex nozzle.

The fully-enclosed work center ensures a clean work environment while maximizing coolant flow.

Like all Grizzly CNC machines, the G0884 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the CNC may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Main motor: 4 HP, 220V, 3-phase, 6.4A
  • Swing over bed: 13"
  • Swing over tool rest: 6"
  • Distance between centers: 27"
  • Maximum tool bit size: 5/8"
  • Spindle speed range: 30–4000 RPM
  • Spindle nose taper: MT#7
  • Spindle: A2-4
  • Spindle bore: 1.49"
  • Tailstock barrel taper: MT3
  • Tailstock barrel travel: 4-1/2"
  • X-axis travel: 6-1/4"
  • Z-axis travel: 20"
  • X-axis rapid speed: 235 in./min.
  • Z-axis rapid speed: 315 in./min.
  • Coolant capacity: 14 gallons
  • Overall dimensions: 75" W x 47" D x 83" H
  • Approximate shipping weight: 3100 lbs.

FEATURES:

  • Siemens® Sinumerk CNC controller
  • Servo motors with ball screws on all axes
  • Powerful 4 HP main motor
  • 6 position turret for automatic tool changing

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate is not available.
