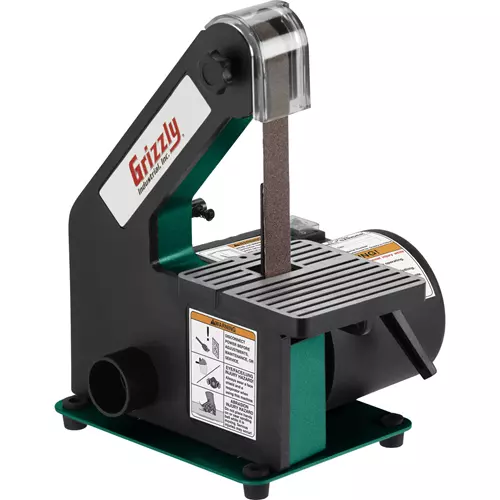

Grizzly H3140 - 1" x 30" Belt Sander
H3140 1" x 30" Belt Sander
The ideal companion to bandsaws and scroll saws.
The H3140 1" x 30" Belt Sander provides a moving abrasive surface that can be used to shape and contour small workpieces.
By tilting the adjustable table, sanding operations can be performed on miter-cut, or other angled workpieces.
The table tilts to 45°, which also makes this belt sander an excellent sharpening tool for your chisels and turning tools.
The belt is easily changed, allowing for the use of sanding belts of different grits. For a full range replacement belts for the H3140, shop here.
Edge-sand in tight corners and curved surfaces with ease.
Like all Grizzly sanders, the H3140 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The H3140 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combo sander.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the combo sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Motor: 1/4 HP, 110V, single-phase, 2A
- Sanding belt size: 1" x 30"
- Sanding belt speed: 3300 FPM
- Platen Size: 1" x 2"
- Table Size: 5" x 5"
- Table Tilts Left 0°, Right 45°
- Number of dust ports: 1
- Dust port sizes: 1-1/2"
- Footprint: 6" x 9"
- Overall dimensions: 11" W x 9" D x 13" H
- Approximate shipping weight: 16 lbs.
- Tracking adjustment
- Direct drive
- Built-in 1-1/2" dust port
- Takes standard 1" x 30" belts
