Item# G0864 Model# G0864

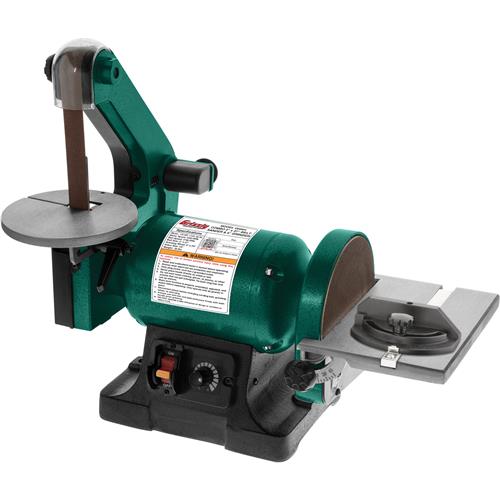

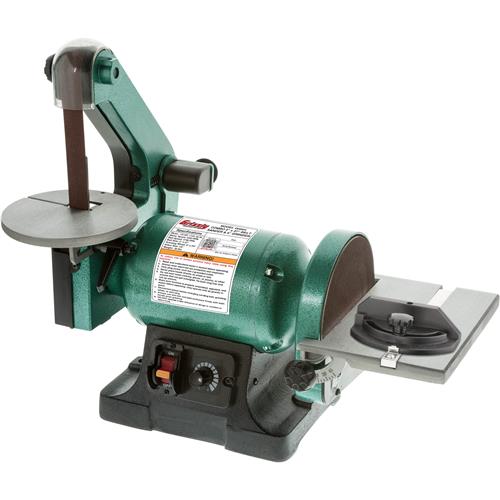

Grizzly G0864 - Variable-Speed 1" x 30" Belt/ 6" Disc Sander

$129.00
+$0.00  Shipping
+$0.00  Oversize

G0864 Variable-Speed 1" x 30" Belt/ 6" Disc Sander

Dial in the optimum speed for all your small sanding jobs.

The G0864 Variable Speed Combination Benchtop Sander offers a 1" wide by 30" long sanding belt and a 6" disc within a very small footprint. For a full range of replacement belts for the G0787, shop here. Replacement PSA sanding discs, which are available in a variety of grits.

The miter gauge can be used on the 0-45° tilting disc sander table for precise compound angle sanding.

The belt sanding table also tilts 0-45° and can accommodate supported work with the platen or freehand contour sanding or sharpening for added versatility.

Keep your workspace clean by utilizing the built-in 1-1/2" and 1-3/4"dust ports for either operation.

Like all Grizzly combination sanders, the G0864 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0864 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your sander.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the combination sander are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 1/2 HP, 120V, single-phase, 4A
  • Sanding belt size: 1" W x 30" L
  • Sanding belt speed: 1900–3200 FPM
  • Sanding belt table size: 5-3/4" L x 5-3/4" W x 7/16" T
  • Sanding belt table tilt: 0-45°
  • Disc sander diameter: 6"
  • Disc sander speed: 2000–3450 RPM
  • Disc sander backing type: PSA
  • Disc sander table size: 8" L x 6-1/8" W x 5/8” T
  • Disc sander table tilt: 0-45°
  • Overall dimensions: 21" W x 12" D x 17" H
  • Approximate shipping weight: 33 lbs.
  • FEATURES:

  • Variable-speed sanding belt from 1900–3200 FPM
  • Variable-speed sanding disc from 2000–3400 RPM
  • Uses standard 1" x 30" sanding belts and 6" PSA sanding discs
  • Dedicated dust collection on each side
  • Switch with removeable safety key
  • Tilting cast-aluminum tables
  • Includes 1-1/2" dust port adapter and miter gauge
  • View More Details
    Add to Cart
    Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

    Accessories

    Recommended For You

    Overview

    G0864 Variable-Speed 1" x 30" Belt/ 6" Disc Sander

    Dial in the optimum speed for all your small sanding jobs.

    The G0864 Variable Speed Combination Benchtop Sander offers a 1" wide by 30" long sanding belt and a 6" disc within a very small footprint. For a full range of replacement belts for the G0787, shop here. Replacement PSA sanding discs, which are available in a variety of grits.

    The miter gauge can be used on the 0-45° tilting disc sander table for precise compound angle sanding.

    The belt sanding table also tilts 0-45° and can accommodate supported work with the platen or freehand contour sanding or sharpening for added versatility.

    Keep your workspace clean by utilizing the built-in 1-1/2" and 1-3/4"dust ports for either operation.

    Like all Grizzly combination sanders, the G0864 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

    The G0864 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your sander.

    The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the combination sander are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

    SPECIFICATIONS:

  • Motor: 1/2 HP, 120V, single-phase, 4A
  • Sanding belt size: 1" W x 30" L
  • Sanding belt speed: 1900–3200 FPM
  • Sanding belt table size: 5-3/4" L x 5-3/4" W x 7/16" T
  • Sanding belt table tilt: 0-45°
  • Disc sander diameter: 6"
  • Disc sander speed: 2000–3450 RPM
  • Disc sander backing type: PSA
  • Disc sander table size: 8" L x 6-1/8" W x 5/8” T
  • Disc sander table tilt: 0-45°
  • Overall dimensions: 21" W x 12" D x 17" H
  • Approximate shipping weight: 33 lbs.
  • FEATURES:

  • Variable-speed sanding belt from 1900–3200 FPM
  • Variable-speed sanding disc from 2000–3400 RPM
  • Uses standard 1" x 30" sanding belts and 6" PSA sanding discs
  • Dedicated dust collection on each side
  • Switch with removeable safety key
  • Tilting cast-aluminum tables
  • Includes 1-1/2" dust port adapter and miter gauge
