Item# G0623X3 Model# G0623X3

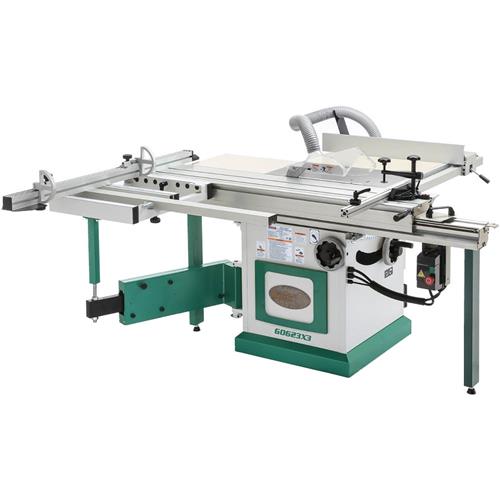

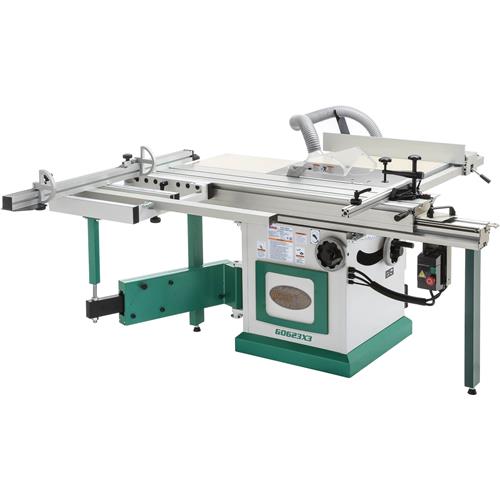

Grizzly G0623X3 - 10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw

10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-0
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-1
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-2
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-3
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-4
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-5
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-6
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-7
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-8
10" 7-1/2 HP 3-Phase Extreme-Series Sliding Table Saw-img-9
$3,375.00
+$175.00 Freight
+$0.00  Oversize
  • Motor size: 7.5 HP
  • Tablesaw type: Sliding
  • Blade size: 10"
  • Maximum cutting height @ 90deg: 3-1/8"
  • Maximum cutting height @ 45deg: 2-1/4"
  • Maximum ripping capacity - right: 33"
  • Table type: Precision-Ground Cast Iron
  • Overall table size: 47" x 40"
  • Shipping weight: 670 lbs.

Motor Size

2 HP 3 HP 5 HP 7.5 HP

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Videos
Overview

Get all of the benefits of a sliding table saw in a size that actually fits in your shop! Large panels are fully supported by the sliding table, making ripping and crosscutting almost effortless. The scoring blade eliminates tear-out for factory-fresh edges every time, and dust control is handled by the 4" main port and 2-1/2 port on the blade guard. Easy to set up and operate, this 10" Sliding Table Saw belongs in every production shop.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 7-1/2 HP, 220V/440V* (prewired for 220V), 3-phase, 18A/9A
  • Rip capacity: 33"
  • Crosscut capacity: 63"
  • Blade tilt: 0 - 45°
  • Max. depth of cut @ 90°: 3-1/8"
  • Max. depth of cut @ 45°: 2-1/4"
  • Main table size with extensions: 14-3/8" x 27"
  • Sliding table size: 12-1/4" x 63"
  • Floor-to-table height: 33-5/8"
  • Main blade size: 10"
  • Main blade arbor: 5/8"
  • Main blade speed: 4000 RPM
  • Scoring blade size: 3-1/8" (80mm)
  • Scoring blade arbor: 22mm
  • Scoring blade speed: 8000 RPM
  • Max. width of dado: 1-3/16"
  • Number of dust ports: 2
  • Dust port size: 4" & 2-1/2"
  • Footprint: 25-1/2" L x 28" W
  • Overall dimensions: 76" W x 125" D x 46" H
  • Approx. shipping weight: 670 lbs.

FEATURES:

  • Scoring blade ensures tear-out free cuts
  • Durable extruded aluminum sliding table
  • Miter fence positions 45° right or left
  • Miter fence has two flip stops for repetitive cutting
  • Table extensions for convenient cutting of large panels
  • Precision-ground cast-iron main table
  • Quick clamp on sliding table
  • Main blade sold separately
  • Includes riving knife
  • Adjustable scoring blade kerf
  • Single-lever locking fence
  • 4" Main and 2-1/2" blade guard dust port

*Prewired for 220V. If you require 440V operation, Grizzly must convert your machine at the time of purchase. A $250 non-refundable fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information, please contact technical service.
