Item# G0440HEP Model# G0440HEP

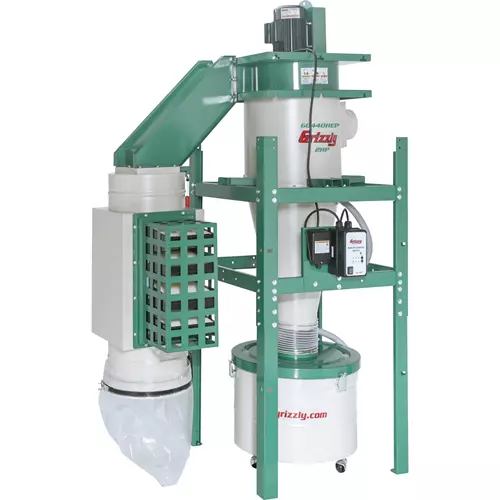

Grizzly G0440HEP - 2 HP Dual-Filtration HEPA Cyclone Dust Collector

2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-0
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-1
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-2
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-3
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-4
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-5
2 HP Dual-Filtration HEPA Cyclone Dust Collector-img-6
$2,295.00
+$129.00 Freight
+$0.00  Oversize
  • Motor size: 2 HP
  • Airflow capacity: 1354 CFM @ 2.5 in. SP
  • Impeller size: 14-1/2"
  • Filtration: 99.97% @ 0.3 Micron
  • Filter size: 15-3/4" x 46-3/4" canister
  • Intake ports: 1 x 7"
  • Sound rating: 78 – 82 dB
  • Overall height: 92"
  • Shipping weight: 476 lbs.

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Overview

G0440HEP 2 HP Dual-Filtration HEPA Cyclone Dust Collector

The best of the best cyclone dust collectors!

This G0440HEP is the same unit as our G0440, but pre-equipped with the upgraded dual-filtration HEPA filter system! Our dual-filtration HEPA cyclones are geared toward those looking for the best filtration on the market.

The G0440HEP 2 HP Dual-Filtration HEPA Cyclone Dust Collector features a primary filter with efficiency of 99.9% at 0.2-2 microns. The secondary HEPA filter has an efficiency of 99.97% at 0.3 microns in size.

The advantage of this dual filtration setup is the majority of all fine dust is captured by the first filter. Only the finest dust makes it to the HEPA filter, resulting in up to a 900% increase in the life of the HEPA filter, potentially lasting up to 10 years!

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 35-gallon steel drum. The fine dust travels past the 14-1/2" diameter impeller and is then trapped by the cartridge filters made of spun-bond polyester. A clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance.

Casters mounted to the drum make disposal of the larger chips and dust as easy as it gets.

Like all Grizzly dust collectors, the G0440HEP comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0440HEP manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your dust collector.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dust collector are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 2 HP, 220V, single-phase, 14A
  • Intake hole size: 7"
  • Impeller size: 14-1/2" steel radial fin
  • Airflow capacity: 1354 CFM @ 2.5" SP
  • Sound rating: 78–82 dB
  • Maximum static pressure: 10.4"
  • Filter surface area: 96 sq. ft.
  • MERV rating: MERV-17
  • Primary filter: 99.9% at 0.2-2 microns
  • Secondary filter: HEPA rated 99.97% at 0.3 microns
  • Collection drum: Steel, 35 gallons
  • Overall dimensions: 59" W x 93-1/2" H x 38" D
  • Approximate shipping weight: 476 lbs.

FEATURES:

  • Dual-filtration with BIA-certified cartridge filter and V-cell MERV-17 HEPA filter
  • Blower and barrel rotate 360 degrees for inlet and outlet positioning
  • Clear, disposable plastic collection bags
  • Gentle brush-cleaning mechanism inside cartridge filter
  • Ramped inlet maximizes dust flow into collection drums
  • Reinforced motor mount
  • Remote-controlled magnetic switch
  • Wall-mountable blower design
  • 14-gauge steel stand
