Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55-gallon steel drum. The fine dust travels past the 15-1/2" diameter impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 to 2 microns in size. The cartridge filter is pleated to provide 113 square feet of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11 gauge steel blower housing, 14 gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class "F" motor and a magnetic switch with remote control device. Stand not included, optional steel legs and support frame (H7509Z) also make setup quick and easy.
CSA certified meeting CAN/CSA C22.2 #243-10 and ANSI/UL 1017-8 standards!
SPECIFICATIONS:Motor: TEFC Class "F", 3 HP, 220V, single-phase, 22ASwitch: Remote controlled magneticIntake hole size: 8"Bag material: PlasticImpeller size: 15-1/2" steel, rivetedAir suction capacity: 1654 CFM @ 2.0" SPMaximum static pressure (inches of water): 14.2"Filter: 99.9% efficiency captures 0.2-2 micron dust particlesFilter surface area: 113 sq. ft.Collection Drum: 55 gallons, steelSound rating: 83–85 dBOverall dimensions: 60-1/4" W x 38-1/2" D x 109" H (93-5/16"H w/35-gal. drum)Base construction: Pre-formed steelApproximate shipping weight: 400 lbs.

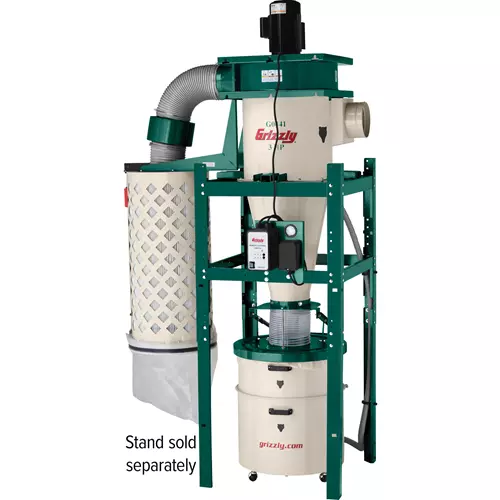

Shown with H7509Z optional stand
