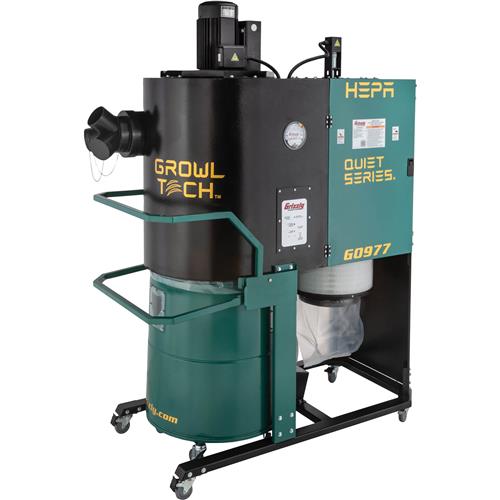

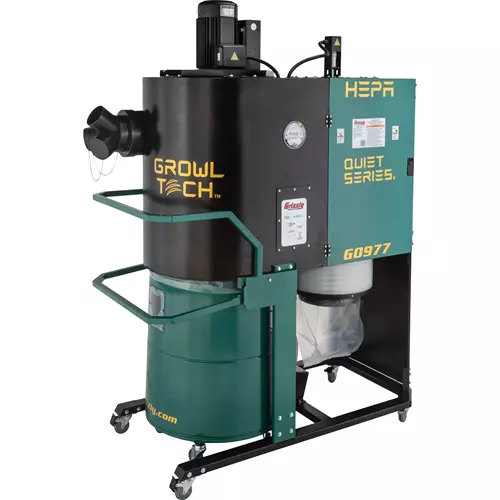

G0977 3 HP Two-Stage GROWL-TECH™ Cyclone Dust Collector - Quiet Series®
A HEPA cyclone dust collector that boasts special technology for enhanced efficiency.
The G0977 3 HP Two-Stage Cyclone Dust Collector is ready to filter out harmful woodworking debris! The cyclonic airflow carries the largest particles to a collection drum, and the patented dual-cartridge MERV-17 HEPA filtration system traps the finest sawdust.
Innovative GROWL-TECH™ technology streamlines routine maintenance for improved efficiency with a pressure gauge, filter status indicators, automatic filter cleaner, and full-drum indicator with automatic shutoff.
This competitively priced HEPA cyclone dust collector also comes with additional innovations that add value and ensure durability for long-term use.
KEY FEATURES AND BENEFITS:
- Quiet Series®: Offers only a 75 dB rating for significant noise reduction over competitors.
- Advanced MERV-17 HEPA Filtration: A patented dual-cartridge system removes 99.97% of particles at 0.3 microns.
- Two-Stage Cyclone Separation: Diverts large chips and debris into a collection drum before they reach the filters for improved airflow and longer filter life.
- Analog Pressure Gauge: Easy pressure monitoring to prevent clogs and other potential issues.
- Automatic Filter Cleaner: Includes motorized paddles that turn on at regular intervals to knock dust into the collection bag.
- Full-Drum Indicator w/ Light: Comes with automatic shutoff to prevent debris overflow.
- Quick-Release Collection Drum: Equipped with convenient casters for effortless dust disposal.
- Remote-Control Operation: Turn the machine on and off and run the filter cleaning from anywhere in the shop.
- Built-In Mobile Base: Comes with lockable casters for easy relocation and point-of-use setups.
- 1-Year Warranty: Backed by Grizzly's industry-leading warranty and U.S.-based customer service for added peace of mind.
SPECIFICATIONS:
- Motor: 3 HP, 220V, single-phase, 26A
- Main inlet size: 8"; three 4" inlet adapters included
- Impeller: Aluminum
- Airflow capacity: 1751 CFM @ 2.50" SP
- Maximum static pressure: 13.3"
- Primary filter: Pleated cartridge, 95% @ 0.2-2 microns
- Secondary filter: HEPA, 99.97% @ 0.3 microns
- Filter surface area: 387.5 sq. ft.
- Collection drum size: 36 Gallon
- Sound rating: 75 dB
- Overall size: 60-1/2" W x 28-1/2" D x 78-1/2" H
- Footprint: 54-1/2" x 27-1/2"
- Approx. shipping weight: 573 lbs.
Enhance health and safety in your production shop with the G0977 3 HP Two-Stage Cyclone Dust Collector.
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
