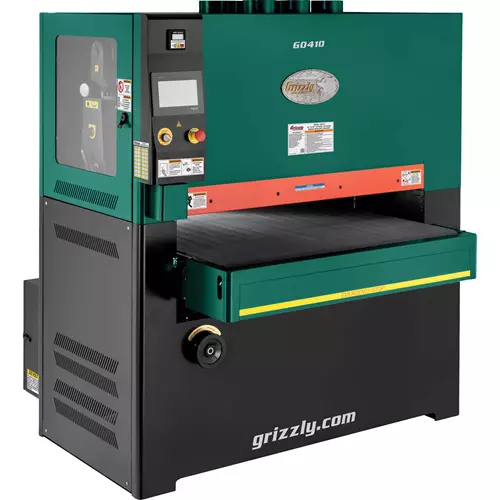

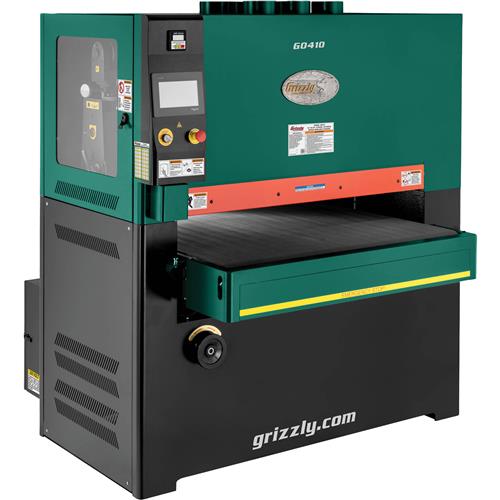

G0410 43" 25 HP 3-Phase Extreme Series Wide-Belt Sander

Deliver consistent, high-quality sanding across workpiece types and sizes in fast-paced production environments.

Get your professional woodworking shop up to full speed by adding this wide-belt sander to your equipment lineup.

Fitted with a robust 25 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.

Special options on this 43" wide-belt sander include a VFD for variable-speed operation, user-friendly touch screen controls, thickness sensor, clear side window, and interior lighting.

This sander is ready to boost productivity whether you are sanding identical boards for large-volume production, creating uniform thicknesses for glued-up panels, or preparing veneered sheets for finishing.

FEATURES & BENEFITS:

• Variable frequency drive (VFD) for efficient, high-torque variable speed using single-phase power
• Touch-screen controls for motors, sanding drum, conveyor, and table elevation
• Material thickness sensor provides a baseline reading and is touch-screen adjustable in increments of 0.005"
• Plexiglass side window and interior lights for easy viewing of sanding belt tracking
• Variable-speed feed conveyor for adaptability and optimal sanding results
• Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
• Amp/load meter to prevent excessive loads while maximizing machine capacity
• Built-in air regulator/water separator to protect pneumatic components
• Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
• Disc brake, emergency stop bar, and stop switch for optimal safety

SPECIFICATIONS:

• Main motor: 25 HP
• Conveyor feed motor: 2 HP, 6A/3A
• Table elevation motor: 1/4 HP, 1.2A/0.6A
• Maximum board width: 43"
• Maximum board thickness: 6"
• Minimum board length: 14"
• Minimum board thickness: 3/16"
• Conveyor speed: 14-60 FPM
• Sanding belt speed: 3543 FPM front, 2565 FPM rear
• Sanding belt size: 37" x 60"
• Sanding belt oscillations: 35-40 OPM
• Air requirement: 75 PSI
• Footprint: 61-1/2" x 31"
• Overall dimensions: 63" W x 60" D x 68" H
• Approximate shipping weight: 3418 lbs.

Built for busy shops, this 43" 25 HP 3-phase wide-belt sander is ready for maximum impact on your bottom line.

Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.

Comprehensive U.S.-Based Support:

Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0410 safeguards your investment, offering peace of mind and ensuring long-term reliability.

Made in an ISO 9001 factory
