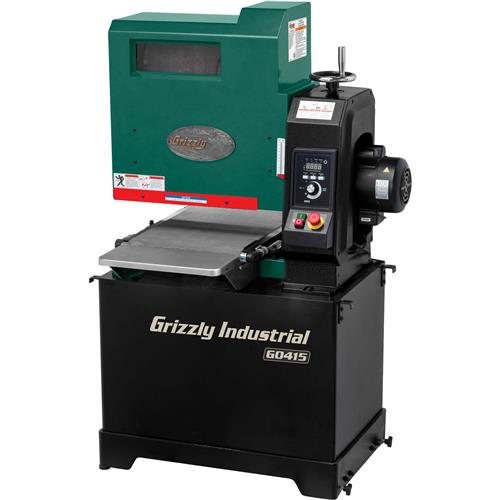

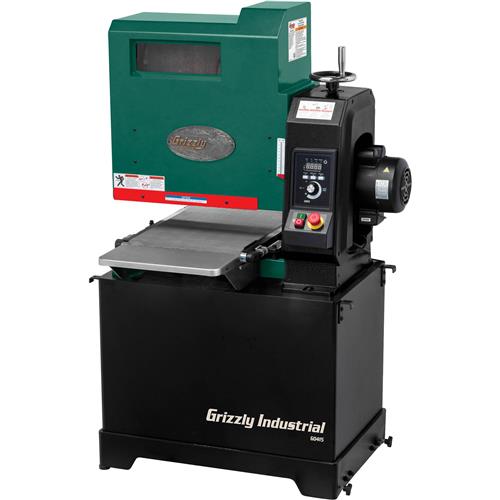

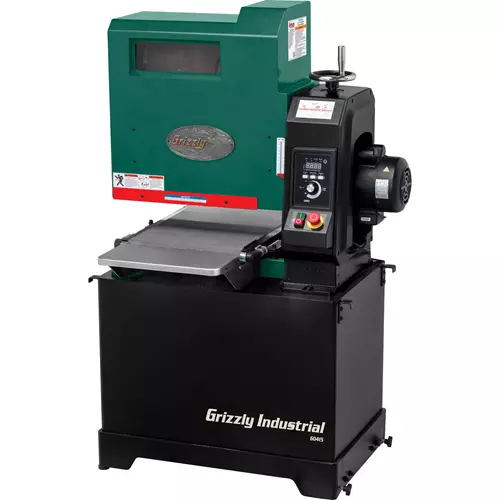

G0415 15" 1-3/4 HP Open-End Wide-Belt Sander

Get cost-effective sanding up to twice as wide as the drum, with variable speed and digital readout for professional results.

This open-end sander is the perfect choice for shops that need consistent, effective sanding up to 30” wide at the lowest possible cost.

This sander is equipped with a digital display to ensure accurate height adjustments for every sanding run, with a variable-speed, heavy-duty conveyor you can modify based on material type and thickness.

The 1-1/2 HP wide-belt sander's open-end design provides flexibility for processing boards up to 30" wide with speed and precision, with an oscillating head for an ultra-smooth finish and extended belt life.

The system also includes a "sand smart" load sensing and auto-adjust function that prevents overload by automatically adjusting feed rate when excess load is detected.

A specialized plenum chamber evenly distributes airflow and stabilizes pressure for efficient dust removal, reducing clogging and improving overall dust collection performance.

Additional features include a mobile base for convenient machine movement around your shop, a conveyor viewing window, and LED lights for enhanced visibility during operation.

Our 15" open-end wide-belt sander is a valuable tool for completing a wide variety of projects such as prepping cabinet doors, cleaning up glue joints, and refinishing reclaimed wood.

FEATURES & BENEFITS:

• Digital Display: View material height in both inches/mm and adjust workpiece thickness as needed based on project specifications.
• Variable-Speed Conveyor: The durable rubber conveyor belt is adjustable between 0–10 FPM.
• Open-End Design: Allows you to sand wider than the drum (up to 30”) by flipping your workpiece around and running a second pass.
• "Sand Smart" Load Sensing and Auto-Adjust Function: Prevents overload by automatically adjusting feed rate when excess load is detected.
• Dust Collection: Uses an air channel (called a plenum chamber) to provide consistent, even airflow to efficiently capture dust and includes a 4" bi-directional dust collection port.
• Stand with Storage: Includes a built-in stand with footpads and a compartment with a shelf for storing sanding belts.
• Bi-Directional 4" Dust Port: Offers versatility to suit your dust collection setup.
• Viewing Window: Allows for easy monitoring of sandpaper belt tracking.
• LED Lights: Mounted inside for better visibility during belt changes or maintenance.

SPECIFICATIONS:

• Main motor: 1-3/4 HP, 115V, single-phase, 14A
• Oscillating/feed motors: 25W, 0.45A
• Maximum board width: 30"
• Maximum board thickness: 4"
• Minimum board length: 8"
• Sanding belt size: 48" L x 15" W
• Sandpaper speed: 2800 FPM
• Sanding belt oscillations per minute: 20
• Sanding belt oscillation stroke length: 5/8"
• Conveyor speed rate: 0-10 FPM
• Conveyor table length: 23-1/2"
• Dust port size: 4"
• Footprint: 34" x 22"
• Overall size: 39" L x 40" W x 60" H
• Approximate shipping weight: 540 lbs.

Get the exceptional quality sanding you need with the affordable G0415 15" Open-End Wide-Belt Sander.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0416 comes with a 1-year warranty.

CSA certified and made in an ISO 9001 factory
