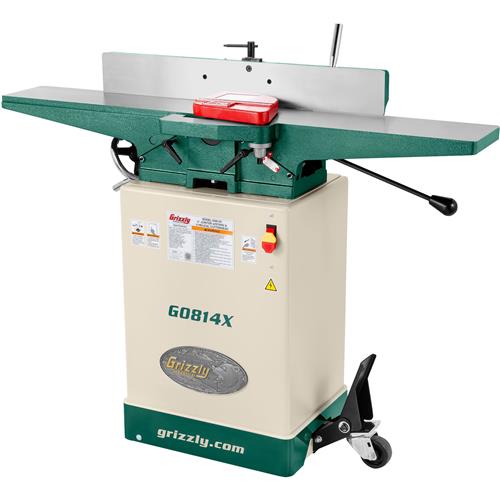

G0814X 6" x 47" Jointer V-Helical Cutterhead

Advanced cutterhead for enhanced woodworking.

Stepping up from our G0814 6" Jointer, the G0814X comes equipped with a 4-row V-helical cutterhead for unmatched finish and long-lasting cutter edge durability.

The innovative V-helical cutterhead uses 24 indexable carbide inserts arranged in a spiral pattern. This design provides a shearing cut that minimizes tear-out, reduces noise, and produces an exceptionally smooth surface. The ability to rotate each insert three times ensures long-lasting cutting performance.

For increased mobility, the cabinet stand comes with a built-in mobile base. Engage the foot pedal caster to move your machine around. Lock the machine down when you are ready to work.

The fence is fully adjustable from 45° to 135°. It has built-in stops at 45°, 90° and 135°.

The precision-ground cast-iron tables move on dovetail ways for smooth and accurate table adjustments.

The H9893 replacement inserts are available when the stock inserts get dull.

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 14A/7A
• Maximum width of cut: 6"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Cutterhead diameter: 2-1/2"
• Cutterhead type: 4-Row V-helical
• Insert size, type: 15mm x 15mm x 2.5mm, indexable carbide
• Cutterhead speed: 5000 RPM
• Table size: 6-5/8" x 47-3/8"
• Table adjustment type: Handwheel
• Fence size: 29-1/8" x 4"
• Minimum stock length: 8"
• Minimum stock width: 3/4"
• Minimum stock thickness: 1/2"
• Dust port size: 4"
• Footprint: 13-1/2" x 18"
• Overall dimensions: 47-1/2" W x 20" D x 42" H
• Approximate shipping weight: 260 lbs.

FEATURES:

• 4-Row V-helical cutterhead with 24 indexable carbide inserts
• Cabinet stand with built-in mobile base
• Precision-ground cast-iron tables with dovetailed ways
• Heavy-duty center-mounted fence with stops at 45°, 90°, and 135°
• V-belt drive system
• Cabinet-mounted power switch

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0814X comes with a 1-year warranty.

Made in an ISO 9001 factory
