Item# G0858 Model# G0858

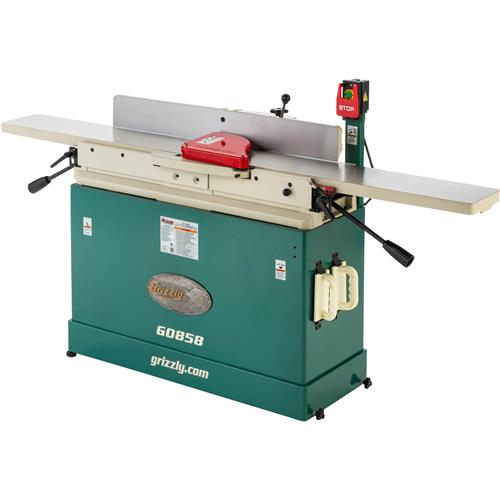

Grizzly G0858 - 8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base

8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-0
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-1
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-2
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-3
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-4
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-5
8" x 76" Parallelogram Jointer with Helical Cutterhead & Mobile Base-img-6
$2,495.00
+$239.00 Freight
+$0.00  Oversize
  • Motor: 3 HP
  • Table size: 76 in. x 8 in.
  • Table type: Precision-Ground Cast Iron
  • Table adjustment: Parallelogram
  • Cutterhead type: Helical
  • Cutterhead diameter: 3-1/16 in.
  • Max depth of cut: 1/8 in.
  • Fence size: 4-1/2 in. x 38 in.
  • Shipping weight: 487 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Videos
Overview

G0858 8" x 76" Parallelogram Jointer w/ Helical Cutterhead

Upgrade to an 8" jointer with an improved finish.

The G0858 Parallelogram Jointer has a 4-row helical cutterhead with 36 indexable carbide inserts. Carbide inserts reduce tear-out and last an average of 10 times longer than traditional jointer knives. Because of the upgrade to the indexable inserts, there is no more changing or sharpening replacement knives every time one gets dull or nicked.

Each insert can each be rotated up to three times to expose a new sharp edge for superior finish. Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.

With the parallelogram table setup, the four points of contact allow for easy adjustment of each table for perfect alignment. The 8" x 76" precision-ground cast-iron table is long enough to handle your longest stock hardwoods. The arched table travel keeps each table close to the cutter and adds a degree of safety during operation. Setting cut depth is a breeze for traditional jointing or rabbeting with the infeed and outfeed adjustment levers.

The H9893 replacement inserts are available when the stock inserts get dull.

Like all Grizzly jointers, the G0858 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0858 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the jointer are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

Certified to CSA standards

SPECIFICATIONS:

  • Motor: 3 HP, 230V, single-phase, 12A
  • Maximum width of cut: 8"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cutterhead diameter: 3-1/16"
  • Cutterhead type: 4-row helical with 36 inserts
  • Insert size & type: 15 x 15 x 2.5mm, indexable carbide
  • Cutterhead speed: 5500 RPM
  • Table size: 8" x 76"
  • Fence size: 38" x 4-1/2"
  • Minimum stock length: 10"
  • Minimum stock thickness: 1/2"
  • Dust port size: 4"
  • Footprint: 16" x 40"
  • Overall dimensions: 76" W x 25" D x 41-1/2" H
  • Approx. shipping weight: 487 lbs.

FEATURES:

  • 4-row helical cutterhead with 36 indexable carbide inserts
  • Parallelogram tables with lever adjustment and depth scale
  • Extra-long 40" infeed table
  • Rabbeting table
  • Cabinet stand with built-in mobile base
  • Cast-iron fence with rack-and-pinion adjustment and angle gauge
  • Fence stops at 45°, 90°, and 135°
