- Motor: 3/4 HP
- Power Requirement: 110V, Single-Phase, 60 Hz
- Swing: 13 in.
- Type: Oscillating
- Range of Spindle Speeds: 250 - 3050 RPM
- Drilling Capacity: 5/8 in.
- Drill Chuck Type: JT33 Key Chuck
- Quill Diameter: 1.565 in.
- Shipping weight: 138 lbs.
Hover to View Details

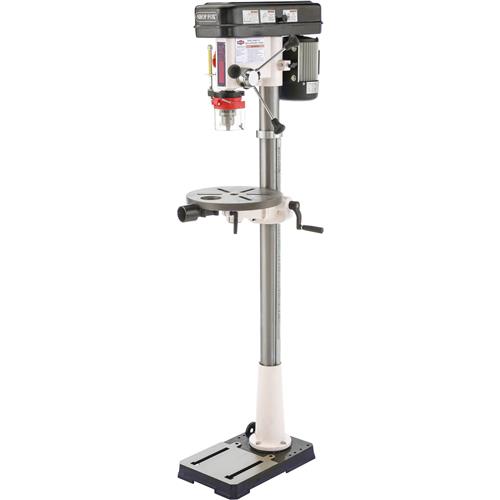

W1848 13-1/4" Oscillating Floor Drill Press
With the oscillating motion, this is much more than just a floor drill press.
The Shop Fox W1848 13-1/4" Oscillating Floor Drill Press can be used for efficient contour sanding in addition to traditional drilling.
Converting from drilling operations to sanding operations takes a matter of seconds with just a few tool-free steps.
The W1848 is fitted with a 1–16mm JT33 keyed drill chuck, offers up to 3-1/8" of travel and a drilling capacity of 5/8" through mild steel.
With the oscillating feature, the oscillating stroke length is 3/4".
The 12-3/8" diameter, round table allows for drilling and surface sanding at different angles as it tilts 90° in both directions.
The table has a clearance hole for use while sanding. This clever design incorporates a 2-1/2" dust collection port so that sanding is less messy.
Like all Shop Fox drill presses, the W1848 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The W1848 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.
The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drill press may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.
Made in an ISO 9001 Factory
Note: Not for use with a mortising attachment or mortising bits.
SPECIFICATIONS:
- Motor: 3/4 HP, 110V, single-phase, 9A
- Swing: 13-1/4"
- Drill chuck: 3/64"–5/8"
- Drilling capacity: 5/8" mild steel
- Spindle taper: JT-33
- Spindle travel: 3-1/8"
- Oscillating stroke length: 3/4"
- Number of speeds: 12 (250–3050 RPM)
- Table: Round, 12-3/8" Dia.
- Table swing: 360 degrees
- Table tilts: 90 degrees in both directions
- Footprint: 11" W x 17-1/2" L
- Overall dimensions: 15" W x 24" L x 63"
- Approx. shipping weight: 138 lbs.
FEATURES:
- Sanding drum shaft
- 2-1/2" Table dust port
- 3/4" Oscillating spindle
- 12 Speeds
- 3/4 HP motor
- Cushioned grip quill handles
- 3/64"–5/8"Chuck
- Includes 7/8", 1-7/16", and 1-15/16" Sanding Drum Set (D2677)
