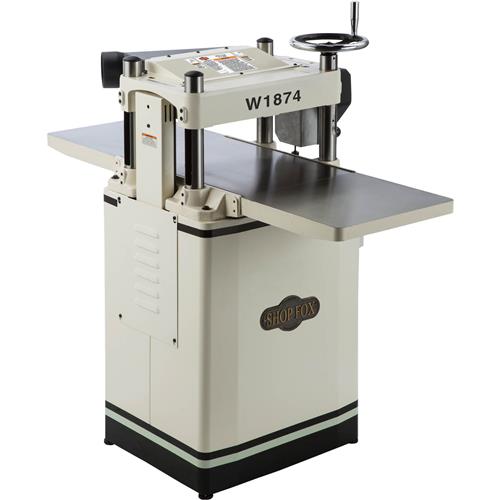

W1874 Shop Fox 15" Helical Cutterhead Planer

Save money by planing rough lumber at a lower cost, which can be smoothed and flattened to create finished boards.

The W1874 15" Fixed Table Planer features a powerful 3 HP motor and 5200 RPM, 4-row helical cutterhead.

The 48 carbide inserts have four cutting edges make for ultra-smooth finishes in figured wood and last up to 10 times longer than conventional knives.

The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.

The fixed table height design allows for permanent infeed/outfeed roller setups for greater efficiency in production settings.

The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high production feed rate.

Sturdy four-column supports with twin gas struts on either side make for easy headstock height adjustments.

Like all Shop Fox planers, the W1874 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1874 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

The Customer Service and Technical Support Teams are also U.S.-based. Parts for the planer may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 230V, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum cutting height: 3/16"
• Maximum cutting depth full width: 1/8"
• Maximum cutting depth 6" wide board: 3/16"
• Minimum length of stock: 6"
• Cutterhead diameter: 2-5/8"
• Cutterhead type: 4-row helical, 48 inserts
• Feed rate: 16, 28 FPM
• Table size: 15-1/2" x 49"
• Dust port size: 4"
• Overall dimensions: 25" W x 49" D x 47-1/2" H
• Approximate shipping weight: 377 lbs.

FEATURES:

• Two-year warranty!!
• Four heavy-duty support columns
• Fixed table height design
• Anti-kickback fingers
• Oil bathed 2-speed gearbox
• Cast-iron extension wings
• Elevation scale with both inch and metric
• Magnetic switch
• Poly-V belt drive
• Cabinet-style stand
• Large top-mounted handwheel
