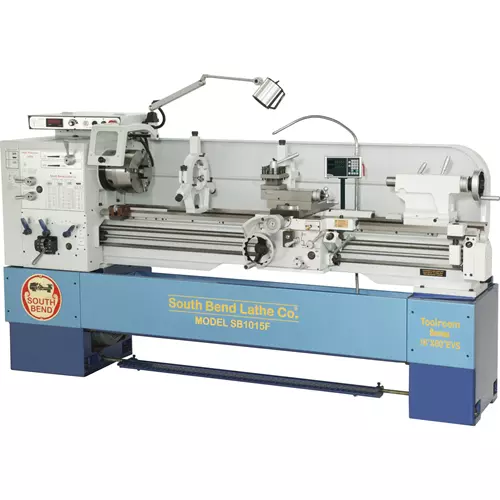

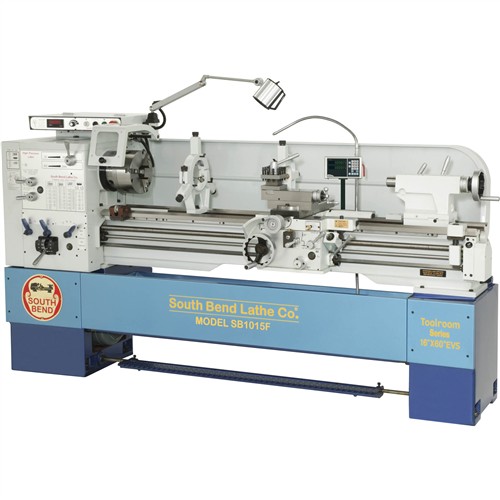

SB1015F 16" x 60" EVS Toolroom Lathe with Fagor DRO

As the name implies, the South Bend 16" x 60" EVS Toolroom Lathe feature EVS (Electronic Variable-Speed) spindle control, which allows the operator to quickly set the exact spindle speed within the available range of 20–2500 RPM.

Spindle speed is displayed on a Fagor digital readout and controlled within each speed range with the use of a dial—no changing gears or looking up complex lever positions on a chart.

The beds of these lathes are constructed with Meehanite® castings that have been precision hardened and ground in the traditional 3-V prismatic design—long used on South Bend Lathes for its accuracy, durability and rigidity.

The headstock features quick-change gear levers and an adjustable clutch mechanism for the feed rod that can be set to prevent damage in the event of a crash.

To further ensure a high degree of accuracy, these lathes are equipped with NSK or NTN spindle bearings.

The SB1015F manual was written by our U.S.-based Technical Documentation Department.

All South Bend lathes come with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The South Bend Technical Support team is U.S.-based. Parts for the lathe may be available online and shipped from the parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Spindle motor: 7-1/2 HP, 440V, 3-phase, 11A
• Coolant motor: 1/8 HP, 0.18A
• Swing over bed: 16"
• Distance between centers: 60"
• Swing over cross slide: 10-3/8"
• Swing over gap: 22.95"
• Cross slide travel: 9.25"
• Compound slide travel: 5.1"
• Spindle nose: D1-6 Camlock
• Spindle bore: 2.0625"
• Taper inside spindle: MT#6
• Spindle speed: Variable, 20–2500 RPM
• Inch threads: (45) 2 to 72 TPI
• Metric threads: (39) 0.2 to 14mm
• Modular threads: (18) 0.3 to 3.5
• Diametral threads: (21) 8 to 44
• Longitudinal feed: 0.002 to 0.067 IPR
• Cross feed: 0.001 to 0.034 IPR
• Number of feed selections: 17
• Tailstock barrel diameter: 2.047"
• Tailstock quill travel: 6"
• Tailstock taper: MT#4
• Footprint: 19-1/2" x 101-7/8"
• Approximate shipping weight: 3488 lbs.

FEATURES:

• Fagor 2-axis DRO
• Meehanite® casting, signature South Bend 3 V-way bed
• Yaskawa frequency drive
• Centralized lubrication pump for bed-ways and cross slide
• Full-length emergency foot brake
• 9" 3-Jaw scroll chuck
• 10" 4-Jaw independent chuck
• 12" faceplate
• U.S.-based customer service and technical support

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
