Overview

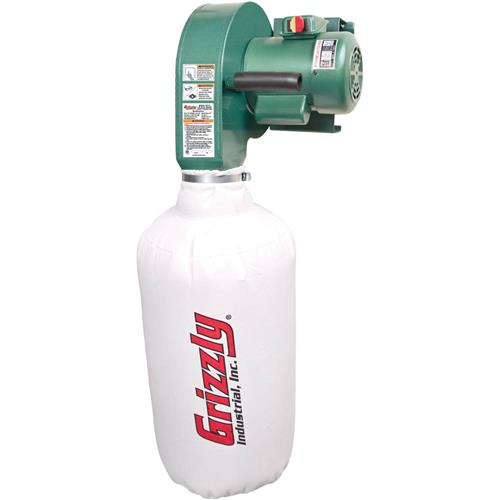

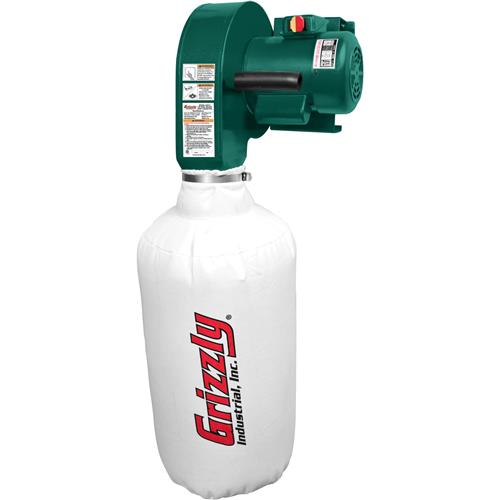

Mount this 1 HP Dust Collector to your wall and keep precious floor space free of clutter. With 537 CFM, this Dust Collector will handle just about any dust producing machine in your shop in a point-of-use, dedicated setup. A simple mounting bracket allows you to hang this dust collector on the wall, or mount it to a bench or the floor. Very versatile!

Made in an ISO 9001 Factory

CSA certified meeting CAN/CSA C22.2 #243-M91 and UL 1017-4 standards!

Specifications:

  • Motor size: 1 HP, 120V/240V, single-phase, pre-wired to 120V
  • Amps: 7A at 120V, 3.5A at 240V
  • Intake hole size: 4"
  • Bag size (diameter x depth): 13-1/2" x 24"
  • Powder-coated paint
  • Impeller: 10" balanced cast aluminum
  • Air suction capacity: 537 CFM
  • Maximum static pressure: 7.2"
  • Filter: 30 Microns
  • Made in an ISO 9001 company.
  • Approximate shipping weight: 52 lbs.
  • Optional Bag Upgrade to 3-Micron Filtration: H4340

    Reviews

    63 Customer Reviews(4.9 out of 5 stars): Sign in to write a review

    Alan S
    Works great! 01/01/2020 3:34:58 PM

    It performs great. Powerful suction and is really quiet.

    Anonymous Reviewer
    Good product...well made 12/29/2019 1:53:27 PM

    No feedback given

    Anonymous Reviewer
    Great Little Dust Collector 12/29/2019 12:51:06 PM

    I Got This For Christmas , Works Like It Should And For A Small Shop/space has great suction ..i would highly recommend to anyone looking for portability .

    ernie D
    Perfect for me 12/29/2019 3:07:28 AM

    Just what I needed for my lathe and to save floor space.

    Anonymous Reviewer
    Hanging Dust Collector 12/27/2019 2:50:31 PM

    I have looked at this dust collector for sometime along with other models . I decided to go with the Grizzly and i have not been disappointed with my choice so far. It fits perfectly on on wall by my table saw and takes up no floor space at all. Grizzly doubled packaged it so damage to product would have been difficult unless it would have dropped from a plane. Very happy with my purchase and i hope it continues as i use the dust collector . Thanks Grizzly for a job well done. Jim from Michigan

    Anonymous Reviewer
    10/30/2019 11:31:50 AM

    No feedback given

    Anonymous Reviewer
    Works great 10/13/2019 2:41:12 PM

    Now if I can find some fitting's that will go on the other end of the 4" tubing I bought along with this so I can use it.

    Anonymous Reviewer
    Exceeded expectations 09/20/2019 6:42:22 PM

    Installation was as per included instructions. Detailed parts list is great in case of issues down the road.

    Was a bit worried about performance as I installed the unit about 12 feet from my workbench (at my Miter saw). However, the air flow and pressure at the saw are more than adequate to maintain a nearly dust free bench top even directly behind the saw. I have used a large shop vac at the saw in past to do this job. Did need to do a minor tweak or two to the saw dust collection features to get where I wanted, but nothing major involved. Also tested on my bench top sander and again, little or no dust escaping. Sound level is significant but not that bad. Less than the shop vac.

    Note that I am using the upgraded 1 micron filter with plastic bag with this collector. Have only got about 10% of the bag filled at this point so can't comment on performance with a near full bag (and more clogged filter). However, the filter has a means of clearing dust (external hand cranked paddle contacting the inner surface) and I believe it will keep performance good as filter sees more dust.

    Anonymous Reviewer
    08/11/2019 11:25:15 AM

    No feedback given

    Anonymous Reviewer
    Good quality 06/30/2019 3:09:43 AM

    No feedback given

    Anonymous Reviewer
    05/31/2019 4:42:02 PM

    No feedback given

    Anonymous Reviewer
    Great dust collector 05/15/2019 3:34:11 PM

    I am pleased with the dust collector.
    Works great for my sanders and other tools not connected to my main dust collection system. Great product for anyone who is looking for a small companion unit

    Anonymous Reviewer
    Great 05/15/2019 10:52:16 AM

    I have these on all my machines and they do the job

    Anonymous Reviewer
    05/01/2019 8:52:48 PM

    Very pleased with my new dust collection machine. Think you for prompt shipping and a good price.

    Anonymous Reviewer
    Fantastic little dust collector. 04/29/2019 7:24:57 AM

    Ideal tool for the job as I use it for my table saw and it tucks right under the extended table taking up no additional space in my shop. As it doesnt have separate dust and filter bags, its a good idea to empty it before it gets very full or it will start to lose suction. Solid construction and relatively quiet.

    Anonymous Reviewer
    Meets my needs for now 04/28/2019 7:03:22 PM

    Purchase and Shipping - I bought the unit online and it arrived 3 days later. The unit arrived via UPS Ground. The outside of the box was undamaged, but upon opening I found the molded styrofoam packing was largely destroyed. The motor and the rest of the system was lying in the bottom of the box. Surprisingly, after inspection, there was not a scratch on the unit, so we're good there. Foam packaging could be improved.

    Assembly and Installation - All the parts needed for assembly was in the box and for me assembly was intuitive. After glancing at the assembly instructions I proceeded to put the DC together and didn't need to look at the assembly instructions again. Pay close attention to installation as the unit has some critical clearance requirements.

    Fit and Finish - Excellent. No complaints.

    Configuration - I have the unit wall mounted in my garage near the garage door opening. I allowed for 1 ft clearance on the sides. I used the factory French cleat type mount. I have a 4" Y fitting just before the inlet. One 2 1/2" hose to the Miter Saw with a shut off gate at the saw. The other line is 4" and using flex hose to my table saw with Rocklers Quick Disconnect system.

    Performance- The unit is 1 HP and has a 10" aluminum impeller. Note: Aluminum is not the most desirable material for DC impellers due to the possibility of a rusty nails striking it and causing a spark. That means that there is a potential for a thermite fire. Think Fourth of July Sparklers. I knew this in advance, so that's on me. I don't have a way to measure the air flow, so the rest is subjective and unscientific. I suppose a digital anemometer is capable of providing you a measurement value, but my experience working for 35 yrs as a Metrology Engineer in a calibration laboratory at a major defense contractor, I've found the lot of them to be untrustworthy, uncalibratable and mostly garbage. The best way to measure air flow is with a pitot system and that is way beyond what we woodworkers need to know. So, I'm forced to go by feel. I used to own the 2 HP (240VAC) Grizzly DC and it was a monster for my small double car garage shop. My only complaint with it was that it was just too large, and was seemingly always in my way - plus it was tethered to the only 240VAC outlet in my garage, so I sold it. So, from that perspective the little wall mount unit is a compromise. At first, after connecting it to my Jet JWTS-10 contractor table saw I was a little underwhelmed. I have the plastic bottom in it and have enclosed the rear of the saw with masonite. I've since sealed the cast iron table to the base of the saw using upholsters foam. It helped a lot.

    Summary- I am satisfied so far. The unit is small and is better than a shop vacuum. The Grizz is adequate running on one station at a time and picks up 90% of the dust out of my table saw. I don't like that the unit came with a 30 micron bag. That is way too porous and lets dangerous small dust particles escape through the bag and into the air. My opinion is that It should come with the 3 micron bag, that's optional at Grizzly (P/N H4340). I am currently waiting for the T10877 cannister filter and clear plastic bag to come off back order and will definitely buy once available.

    Anonymous Reviewer
    04/28/2019 12:46:27 PM

    No feedback given

    Anonymous Reviewer
    Works exactly like I expected. Saves precious floor space in my small shop. 04/26/2019 1:28:35 PM

    I paired this with a dust separator lid (W1049) on a 30-gal trash can. Connected to my planer, jointer, and edge sander. Nothing ends up in the bag. So much quieter and more convenient than a shop vac.

    Anonymous Reviewer
    04/26/2019 12:52:51 PM

    No feedback given

    Anonymous Reviewer
    04/26/2019 12:18:39 PM

    It is a perfect compliment to my dust collection system

    Anonymous Reviewer
    Easy to install, looks good and performs as expected. 04/03/2019 3:45:04 PM

    No feedback given

    Anonymous Reviewer
    Nice 02/09/2019 1:48:41 PM

    Remember man that thou art dust, so its good to keep it in one place. This device is efficient, compact and very handy. Not too noisy, a great addition to keep my multi use work area clean.

    Anonymous Reviewer
    02/07/2019 2:15:18 PM

    No feedback given

    Anonymous Reviewer
    Why did I wait so long? 01/30/2019 2:13:00 PM

    I have been using a shop vac for years. It worked ok but was not very good with the big saws and planer. The hanging dust collector is awesome. Very efficient and surprisingly quiet.

    Larry F
    THis is a must for a small shop 01/02/2019 2:25:51 PM

    So much quitter than my Shop vac and it moves a lot of air. I paired it with a trash can dust separator and could not be happier.

    Anonymous Reviewer
    Very Happy with the dust collector 11/16/2018 10:36:54 PM

    Good high cfm unit for the money, Keeps an old Unisaw from making as big of a mess.
    one minor issue was there was no mounting bracket, so I fabricated one myself

    Anonymous Reviewer
    11/16/2018 12:16:41 AM

    I recently finished installing a Grizzly 1-HP Wall Hanging Dust Collector (G0710) including 4" piping to my various tools (radial arm saw; router, sander, & floor sweep). I was concerned about how loud the collector would be it but it turns out, to my surprise & delight, that it is no louder, if even as loud as the old shop vac it replaced. It does a more than adequate job in capturing the majority of the dust & chips each machine creates. The fact that I installed gate on the piping that runs to each of my work stations has allowed me to harness the full potential of the collector. This is my first purchase of a Grizzly product and I am impressed enough with the quality of materials used in the manufacturing of this collector, as well as its performance, that I will definately consider additional Grizzly products in the future. That is if I can convince my wife to allow me to expand my workshop to fit more tools ;-)

    Dennis W.

    cory A
    06/24/2018 2:50:13 PM

    No feedback given

    Ryan
    So far so good! 06/17/2018 1:36:35 PM

    I've only done a few projects but everything seems to be clean and running great!

    USA G
    Excelent 06/13/2018 4:41:46 PM

    No feedback given

    Anonymous Reviewer
    Great small dust collector 06/04/2018 9:00:11 PM

    Bought this item has plenum of power for what I need

    Paul K
    05/16/2018 1:51:40 PM

    No feedback given

    Anonymous Reviewer
    Great Dust collector 05/07/2018 11:28:26 AM

    I bought this a while ago but due to cold weather in my area was not in my shop. Now I have installed and works great. I have a small shop in a one car garage and this is perfect.

    Thomas H
    05/06/2018 7:40:56 AM

    No feedback given

    Anonymous Reviewer
    Expected more 05/03/2018 2:04:21 PM

    Good machine except that it seems to be a little low on power/suction

    Anonymous Reviewer
    Fantastic 05/02/2018 11:37:45 AM

    Bought this to hang on the wall in my 8x10 sanding room and connected it to the belt sander and the spindle sander. It clears up floor space, is fairly quiet and extremely efficient. Easy to install and operate.

    Wes H
    04/18/2018 12:55:10 PM

    No feedback given

    Anonymous Reviewer
    04/09/2018 9:34:32 PM

    No feedback given

    George B
    Just what I needed 02/03/2018 6:33:12 PM

    I needed something to pull the dust from my table saw and this does the job well.

    jim H
    I bought this dust collector about a month ago and thought it would cure my dust problem, but it di 12/18/2017 5:15:52 PM

    No feedback given

    Mark E
    12/07/2017 2:26:49 PM

    No feedback given

    Anonymous Reviewer
    10/06/2017 10:11:35 AM

    I haven't used the dust collector enough to give it the test of time but, so far, it works extremely well, suction is excellent and it's pretty quiet. Mine was a little damaged in the box upon arrival and Grizzly was very quick to make it right.

    Anonymous Reviewer
    09/21/2017 12:37:14 PM

    Very happy with this purchase. I have a very small shop so space is at a premium, and being able to wall mount this was a huge selling point for me. It's far quieter than my shop vac was, or maybe it's just a lower pitch, but the noise is so much more tolerable so I use it a lot more. It was easy to mount in just a couple minutes. Definitely recommend!

    Richard S
    great for its size 09/15/2017 12:08:58 PM

    I purchased this product almost 3 years ago now and it still serving me well. my initial intent for purchasing was to stem it into my drum sander alone. due to the fine dust that it produces verses the density of the collection bag it was a horrible plan but since then I have hung it in more of a central location and have it receiving from a 12" table saw, radial arm saw and a shaper. does a fantastic job. on another upside, this machine is a lot smaller than many, making it easier to move around the shop for my weekly clean up.
    down falls= it has to be located relatively close to an outlet due to the length of the electrical cord, you've got to keep an eye on your hose as mine frequently wants to come off and the finer the dust the more frequent you have to clean your collection bag. the pours in the bag plug up a bit quick and you loose your vacuum strength.

    Anonymous Reviewer
    Good for the price! 08/23/2017 7:40:50 PM

    It does the trick. I'm able to use a hose and connect to each tool. The only issue is big pieces of debris clogs right at the hose port. I'll build a cleanout box to fix that.

    Anonymous Reviewer
    Great quality 07/23/2017 12:39:21 PM

    Great quality unit. Very happy with its power and value. Definitely a step above Harbor Freight units.

    Anonymous Reviewer
    07/03/2017 2:12:50 PM

    Has worked great thus far. Easy to install. much quieter than my old dust collector.

    Anonymous Reviewer
    06/18/2017 1:15:44 PM

    So far I am very happy with this economical dust collector. I use it with my new Super Max 1938 drum sander and it does the job. I would recommend it to anyone who needs a space saving but effective way to collect sawdust. The separator lid also appears to be doing its job. nice to see dust in the can and an empty collector bag. Glad I purchased them both.

    Anonymous Reviewer
    nice unit ! 06/03/2017 7:51:24 PM

    the basement is much cleaner , witch makes the ole lady happy

    Michael M
    Great product for a small workshop 06/02/2017 1:20:15 PM

    I've had this dust collector for a couple of months now and it has greatly reduced the amount of dust that I used to breath in. Never had one before and I notice quite a difference in the reduce dust collecting on everything in the shop. Since I never had one before, I was not quite sure what to expect. To me the positive is the easy assembly and hook up to the bandsaw I use, My only negative would be the sound. It is a small yet powerful tool and sounds a little like a jet engine. Still quite satisfied with the product.

    Anonymous Reviewer
    Use this on my Radial arm saw with a dust collecter shoot and love it hangs on the wall out of the w 06/02/2017 2:07:56 AM

    No feedback given

    Anonymous Reviewer
    06/02/2017 12:24:51 AM

    No feedback given

    Jeffrey J
    06/01/2017 10:45:37 PM

    No feedback given

    Anonymous Reviewer
    01/31/2017 11:15:39 PM

    No feedback given

    Anonymous Reviewer
    Small but mighty! 01/29/2017 4:42:27 AM

    I bought this DC to collect dust solely from the G0514X2B 19-inch bandsaw. A Grizzly tech rep advised me that it may not be powerful enough to collect all the dust from this large bandsaw's upper and lower 4-inch ports. Although I appreciated his candor I decided to try it anyway as it would be difficult to extend my DC system to the bandsaw. It works great and collects all the dust! Recommended.

    Roddy W
    Good machines 01/28/2017 12:23:45 AM

    I have five of these dust collection units in my shop, they work great.

    Anonymous Reviewer
    A need for a small wood shop 01/27/2017 3:01:24 PM

    I really like my dust collector. It could use a little more suction, but overall does a good job. It's perfect for a small wood shop.

    Anonymous Reviewer
    01/27/2017 2:43:34 PM

    So far I am well pleased with it it is doing the job I wanted it to do

    charles Z
    01/26/2017 2:10:17 PM

    We wanted to do more in the way of dust collection in our shop, and cutting face frame materials trim etc can produce a lot of saw dust. So after much research we ended up with this dust collector solely for this station and so very glad we did. It's very powerful and not annoyingly loud.

    Anonymous Reviewer
    01/25/2017 9:03:59 PM

    No feedback given

    Anonymous Reviewer
    01/25/2017 6:36:34 PM

    Prompt shipping, excellent customer service and product performance.

    Anonymous Reviewer
    Bought this to pull dust from the lathe while turning 01/22/2017 11:35:19 AM

    No feedback given

    Alec
    wall hanging dust collector 05/16/2016 8:09:12 PM

    excellent machine , but assembled hard. there was paint in the treads that I had to tap before assembly
