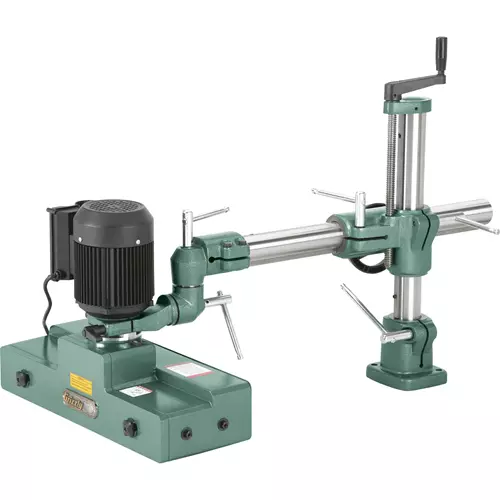

G1168 1 HP 4-Speed Track Power Feeder, 3-Phase

If you do any kind of production ripping or milling, you know what a big chore it can be feeding by hand, especially with longer and wider stock.

For those who want to increase production, upgrade, or add on another stock feeder, we have a power feeder to match virtually any application and budget.

SPECIFICATIONS:

• Motor: 1 HP, 220V, 3-phase, 3.4A
• Feed speeds: (4) 14.5, 29, 39, 78 FPM
• Rotation: Forward & reverse
• Max. height of track: 8-1/2"
• Min. workpiece length: 8"
• Horizontal travel: 24-1/4"
• Swing: 360°
• Track: (3 pieces) synthetic rubber, 1/2" x 44"
• Track suspension: 3/4"
• Mounting base size: 3-3/4" x 4-1/4"
• Approximate shipping weight: 150 lbs.

FEATURES:

• Track feed with four speeds and forward/reverse
• Track is spring tensioned with 3/4" suspension
• Heavy-duty gear reduction with hardened gears
• X-, Y-, Z-axis adjustment

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G1368 comes with a 1-year warranty.

Made in an ISO 9001 factory
