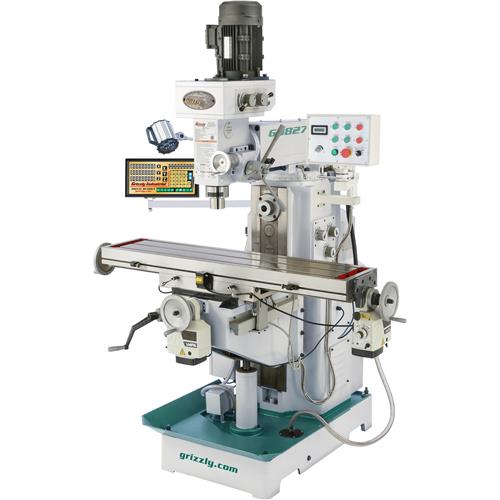

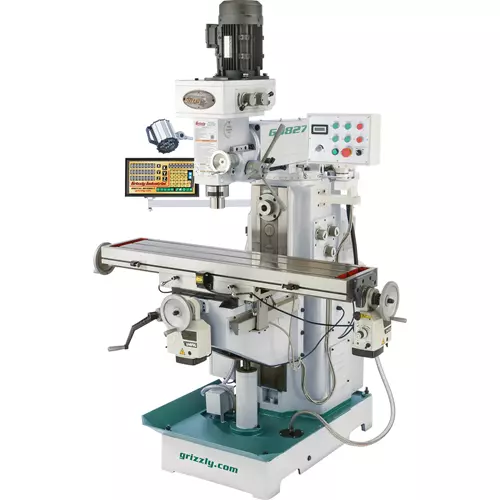

G0827 11" x 50" 2 HP Horizontal/Vertical Mill with DRO

Looking for unwavering torque and consistency in a solid gearhead mill?

This is it as it combines all the range of speeds you need with the size and features that any metalworking shop would want.

A milling machine with horizontal and vertical spindles performs a wide range of machining tasks without the need for extensive setup changes.

It features 8 vertical spindle speeds from 140–2100 RPM and 12 horizontal spindle speeds from 48–1560 RPM.

The head is mounted on a wide-dovetail movable ram with 18" of travel and can tilt 45° left to right. The turret has 180° rotating capability. The turret has 180° of swivel.

A Fagor 3-axis digital readout (DRO) reads down to a 0.0002" resolution for repeatable, accurate milling operations.

The G0827 features 3-axis table movement with independent longitudinal and horizontal power feeds. With the 11" x 50" table, you can set up a rotary table or another fixture on one side without having to remove your vise on the other!

And finally, this milling machine comes with a circulating coolant system with the pump and reservoir in the column base.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Required power source: 220V, 3-phase, min. 15A
• Vertical spindle motor: 2 HP, 220V, 3-phase
• Horizontal spindle motor: 3 HP, 220V, 3-phase
• Coolant pump motor: 40W, 220V, 3-phase
• Spindle taper: R-8
• Vertical spindle speeds: 8, 140–2100 RPM
• Horizontal spindle speeds: 12, 48–1560 RPM
• Spindle travel: 5"
• Max. distance spindle-to-column: 27-1/2"
• Max. distance spindle-to-table: 17-1/16"
• Table size: 11" x 50"
• Longitudinal travel: 29"
• Cross travel: 10-1/2"
• Vertical travel: 13-9/16"
• Ram Travel: 18"
• Head turret/column swivel: 180°
• Head tilt: 45°
• Overall dimensions: 65" W x 67" D x 85" H
• Approximate shipping weight: 2866 lb.

FEATURES:

• 3-Axis DRO
• Horizontal and vertical R-8 spindles
• High-precision P5 spindle bearings
• Independent X- and Y-axis power feed
• Coolant recycling system
• LED work light

INCLUDES:

• 1–13mm drill chuck with key and arbor
• R-8 to MT#3 spindle sleeve
• MT#3 to MT#2 spindle sleeve
• 1" and 1-1/4" horizontal spindles
• Service tools and toolbox

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0827 comes with a 1-year warranty.
