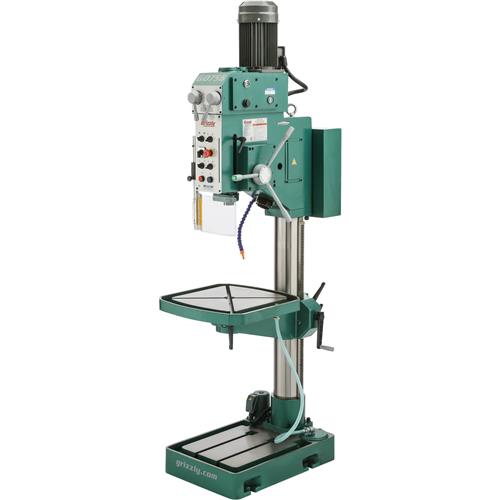

G0756 27-1/2" Heavy-Duty Gearhead Drill Press

Built for the most demanding production shops, the Grizzly G0756 27-1/2" Heavy-Duty Gearhead Drill Press delivers the precision, power, and speed you need to tackle any job. This machine is engineered for professionals who require a rock-solid, high-performance drill press capable of handling large-scale projects and materials.

Why a Gearhead Drill Press?

Unlike belt-driven machines, gearhead drill presses are designed for drilling larger holes with less effort. The G0756 features a 1-1/8 HP / 2 HP motor that provides the brute force needed for heavy-duty drilling and tapping. You'll experience superior torque and consistent power, even when working with tough metals.

FEATURES and BENEFITS:

• Quick-Change Gearbox Controls: Say goodbye to the hassle of changing belts. The convenient gearbox controls let you quickly change spindle speeds by simply twisting a lever or two. With 18 speeds from 60–1740 RPM, you can instantly find the perfect setting for any material or bit size, saving you valuable time and effort.
• Massive, Rigid Construction: A huge 6" column diameter provides the necessary stability to ensure repeatable accuracy, even when drilling large 1-1/2" holes at high speeds. The precision-ground cast-iron table is nearly 2" thick and features a 22" x 22" work surface, giving you ample support for large workpieces.
• 7" Spindle Travel with Power Downfeed: The MT #4 spindle offers an impressive 7" of travel, along with a 2-speed automatic downfeed for consistent, controlled drilling. You also get a power tapping with an electronic clutch, making thread cutting faster and more precise than ever.
• Enhanced Workflow: The built-in LED work light illuminates your workspace, ensuring a clear view of your work. The tooling ejection feature makes bit changes fast and easy, while the built-in coolant system is a vital feature for extending tool life and ensuring a cleaner cut when drilling metal.

SPECIFICATIONS:

• Main motor: 1-1/8 / 2 HP, 220V, 3-phase, 6.4A
• Coolant pump: 75W
• Swing: 27-1/2"
• Max. spindle to table: 30-3/4"
• Max. distance spindle to column: 11"
• Spindle travel: 7"
• Spindle speeds: 18, 60–740 RPM
• Spindle taper: MT #4
• Drilling capacity for cast-iron: 1-1/2"
• Drilling capacity for steel: 1"
• Downfeed speeds: 1mm/rev, 2mm/rev
• Table size: 22" L x 22" W x 1-7/8" H
• Vertical table travel: 20"
• Table swivel: 360°
• Table T-slot size: 9/16"
• Quill diameter: 3"
• Footprint: 29" x 20"
• Overall size: 22" W x 37" D x 89-1/2" H
• Approximate shipping weight: 1202 lbs.

INCLUDES:

• MT#4 to MT#3 spindle sleeve
• MT#4 to MT#2 spindle sleeve
• 1/8"–5/8" Drill chuck with arbor
• Drift key
• Bottle for oil
• Toolbox

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0756 comes with a 1-year warranty.

Made in an ISO 9001 factory
