Item# G9729 Model# G9729

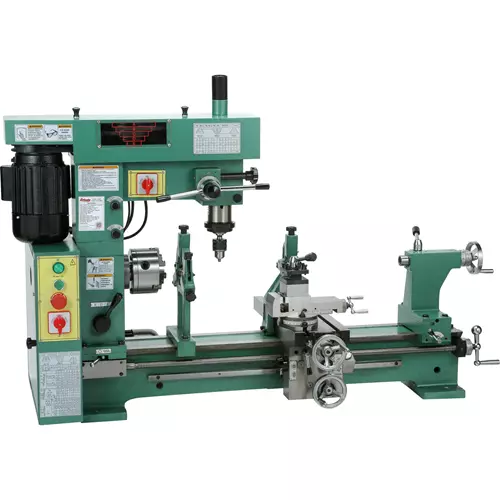

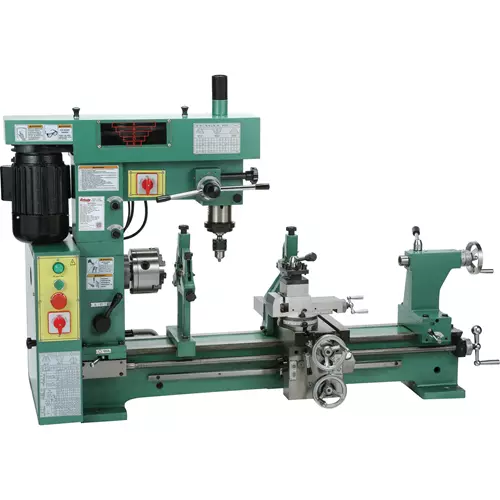

Grizzly G9729 - 31" 3/4 HP Combo Lathe/Mill

$2,995.00
+$229.00  Freight
+$0.00  Oversize

G9729 31" 3/4 HP Combo Lathe/Mill

Need a larger combo machine?

One with an awesome 31" between centers and 16-1/2" swing?

The G9729 31" 3/4 HP Combo Lathe/Mill is the answer.

With great features like a magnetic controller and a forward/reverse switch, hardened and ground bedways, two motors for extra power and a 4-way turret tool post makes this a real do-it-all machine.

Cuts inch and metric threads with ease and includes a built-in milling table with T-slots, a steady rest and a follow rest.

Convenient window allows easy verification of drill spindle speeds.

An incredible machine at an unbeatable price!

Like all lathe mills, the G9729 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G9729 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe mill.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

LATHE SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase, 8.8A
  • Swing over bed: 16-1/2"
  • Swing over cross slide: 11-1/2"
  • Distance between centers: 31"
  • Spindle speeds: 7, 175–1425 RPM
  • Spindle bore: 1-1/8"
  • Spindle nose taper: MT #4
  • Tailstock barrel taper: MT #3
  • Tailstock travel: 2-1/2"
  • Cross slide travel: 7-1/2"
  • Compound travel: 3"
  • Longitudinal feeds: 24, 0.002–0.014 in/rev
  • Inch thread range: 44, 4–120 TPI
  • Metric thread range: 14, 0.75–6.0mm

MILL SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase, 8.8A
  • Swing: 22"
  • Distance from spindle to table: 12"
  • Distance from spindle to bed: 14-1/2"
  • Spindle speeds: 16, 120–3000 RPM
  • Spindle travel: 4-5/16"
  • Spindle taper: MT #3
  • Table dimensions: 6-1/4" W x 18-3/4" L x 1-1/4" H
  • T-slots: two at 7/16", 3.54" (90mm) on center
  • Maximum tool bit size: 1/2"
  • Drilling capacity: 1/2" (steel)

MAIN SPECIFICATIONS:

  • Dimensions: 58" W x 40-1/2" D x 40" H
  • Approximate shipping weight: 692 lbs.

FEATURES:

  • T-slots in cross slide
  • Carriage lock
  • Power cross feed
  • Power longitudinal feed
  • Fine downfeed
  • Hardened and ground bedways
  • Two separate motors
  • Built-in vise
  • Adjustable mill/drill head

STANDARD EQUIPMENT:

  • 1/2" Drill chuck with arbor
  • 2 Dead centers
  • 4-Way tool post
  • 5" 3-Jaw chuck
  • 9" Faceplate
  • Change gears
  • Follow rest
  • MT #3 chuck arbor 3/8" x 16 TPI
  • Steady rest
  • Threading dial
