Item# G4015Z Model# G4015Z

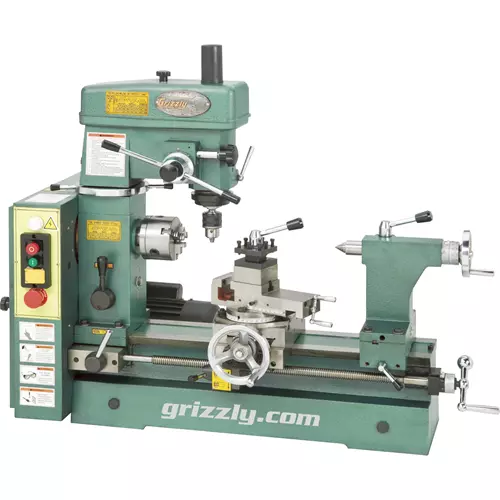

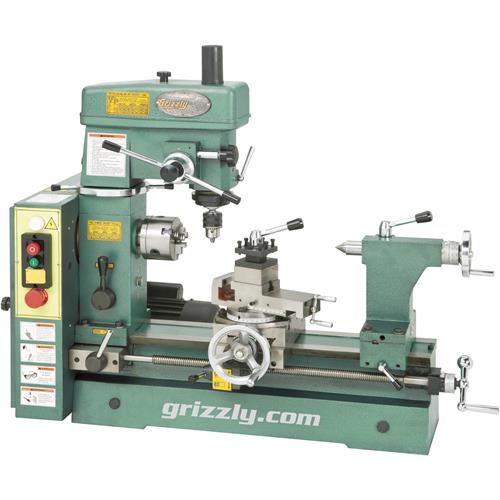

Grizzly G4015Z - 19-3/16" 3/4 HP Combo Lathe/Mill

$2,070.00
+$179.00  Freight
+$0.00  Oversize

G4015Z 19-3/16" 3/4 HP Combo Lathe/Mill

This lathe/mill combo is not your basic benchtop machine!

The G4015Z is a precision metalworking lathe/mill. The lathe features a 16-1/2" swing, 19.2" between centers, and 6 speeds ranging from 185 to 1455 R.P.M.

The lathe cuts inch and metric threads, features 9 longitudinal feeds, and comes with a 4" three-jaw scroll chuck and 9-1/2" faceplate.

The compound rest features a built-in vise and the cross slide conveniently doubles as a mill table.

Meanwhile, the milling portion of the machine features a swing of 12", 14 speeds ranging from 117 to 1300 RPM, and a vise with a 2-3/4" capacity.

It sports an adjustable head, coarse and fine downfeed controls, and comes with a 1/2" drill chuck with arbor.

With the G4015Z, you get a lot of machine in a small package with all the features you need for just about any job!

Like all Grizzly machines, the G4015Z comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G4015Z manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combination lathe mill.

The Grizzly Technical Support team is U.S. based. Parts for the machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

LATHE SPECIFICATIONS:

  • Swing over bed: 16-1/2"
  • Swing over saddle: 11-1/2"
  • Distance between centers: 19-3/16"
  • Bed width: 5-1/2"
  • Spindle speeds: 7, 185–1455 RPM
  • Spindle bore: 0.787"; 20mm
  • Spindle taper: MT#3
  • Tailstock taper: MT#3
  • Tailstock quill travel: 1-1/2"
  • Cross slide travel: 4-1/2"
  • Compound travel: 3"
  • Maximum tool bit size: 1/2"
  • Leadscrew: 7/8"x 6 TPI
  • Longitudinal feeds: 8, 0.0020–0.0069 in/rev
  • Inch thread range: 27, 8–120 TPI
  • Metric thread range: 18, 0.2–3.0mm

MILL SPECIFICATIONS:

  • Swing: 12"
  • Distance from spindle to table: 10"
  • Distance from spindle to bed: 15-3/4"
  • Spindle speeds: 14, 117–1300 RPM
  • Spindle taper: MT#3
  • Spindle travel: 3-1/2"
  • Head vertical travel: 3"
  • Table dimensions: 6" W x 7-1/4" L x 1-1/2" H
  • T-slots: two at 7/16", 3.54" (90mm) on center
  • Maximum tool bit size: 1/2"
  • Drilling capacity: 1/2" (steel)

MAIN SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase 8.7A
  • Dimensions: 42" W x 23" D x 35" H
  • Approximate shipping weight: 475 lbs.

FEATURES:

  • Cross slide doubles as a mill table
  • Coarse and fine mill spindle downfeed
  • Adjustable milling head
  • Built-in vise on compound rest
  • Cuts inch and metric threads

INCLUDES:

  • 1/2" Drill chuck with arbor
  • Two dead centers
  • 4" Three-jaw scroll chuck
  • 4-Way tool post
  • 9-1/2" Faceplate
  • 5" Backplate
  • MT#3 chuck arbor
