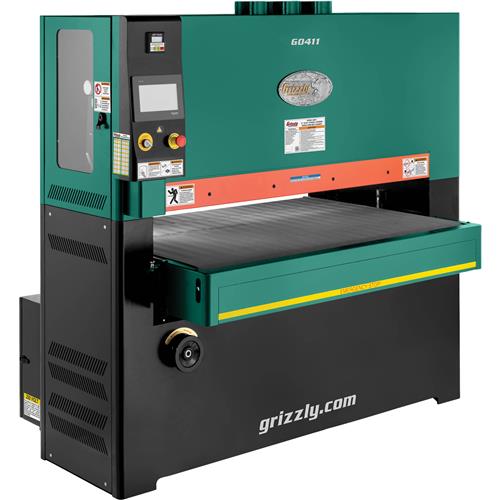

G0411 51" 30 HP 3-Phase Extreme Series Wide-Belt Sander

Power through large-scale sanding production with this industrial-grade wide-belt sander.

Get your professional woodworking shop up to full speed by adding this wide-belt sander to your equipment lineup.

Fitted with a robust 30 HP motor, the sander turns out exceptional quality, consistently smooth workpieces so you can meet every deadline.

Special options on this 51" wide-belt sander include a VFD for variable-speed operation, user-friendly touch screen controls, thickness sensor, clear side window, and interior lighting.

This sander is ready to enhance shop efficiency whether you are sanding oversized panels for architectural millwork, smoothing complex raised panel profiles, or processing extensive production runs with speed and accuracy.

FEATURES & BENEFITS:

• Variable frequency drive (VFD) for efficient, high-torque variable speed using single-phase power
• A platen offers even pressure for fine sanding with a smooth finish
• Touch-screen controls for motors, sanding drum, conveyor, and table elevation
• Material thickness sensor provides a baseline reading and is touch-screen adjustable in increments of 0.005"
• Plexiglass side window and interior lights for easy viewing of sanding belt tracking
• Variable-speed feed conveyor for adaptability and optimal sanding results
• Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
• Amp/load meter to prevent excessive loads while maximizing machine capacity
• Built-in air regulator/water separator to protect pneumatic components
• Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
• Disc brake, emergency stop bar, and stop switch for optimal safety

SPECIFICATIONS:

• Main motor: 30 HP
• Conveyor feed motor: 2 HP, 6A
• Table elevation motor: 1/4 HP, 1.2A
• Maximum board width: 51"
• Maximum board thickness: 6"
• Minimum board length: 14:
• Minimum board thickness: 3/16"
• Conveyor speed: 14-60 FPM
• Sanding belt speed: 2565 FPM
• Sanding belt size: 51" x 60"
• Sanding belt oscillations: 35-40 OPM
• Air requirement: 75 PSI
• Footprint: 68" x 20-1/2"
• Overall dimensions: 70" W x 48" D x 65" H
• Approximate shipping weight: 2822 lbs.

This 51" 30 HP wide-belt sander is ready for extended production runs of wide panels and specializes in precision finish sanding.

Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.

Comprehensive U.S.-Based Support:

Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0411 safeguards your investment, offering peace of mind and ensuring long-term reliability.

Made in an ISO 9001 factory
