Item# W1670 Model# W1670

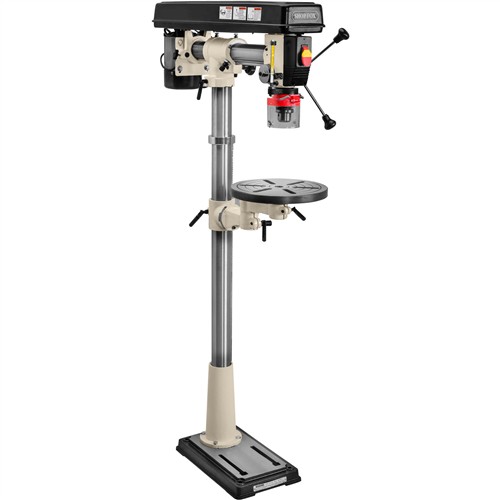

Shop Fox W1670 - 34" Floor Radial Drill Press

34" Floor Radial Drill Press-img-0
34" Floor Radial Drill Press-img-1
34" Floor Radial Drill Press-img-2
34" Floor Radial Drill Press-img-3
34" Floor Radial Drill Press-img-4
34" Floor Radial Drill Press-img-5
34" Floor Radial Drill Press-img-6
34" Floor Radial Drill Press-img-7
$524.99
+$149.00 Freight
+$0.00  Oversize
  • Motor: 1/2 HP
  • Power Requirement: 120V, Single-Phase, 60 Hz
  • Swing: 34 in.
  • Type: Radial
  • Range of Spindle Speeds: 550 - 3000 RPM
  • Drilling Capacity: 1/2 in.
  • Drill Chuck Type: JT33 Key Chuck
  • Quill Diameter: 1.575 in.
  • Shipping weight: 147 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Videos
Overview

W1670 34" Floor Radial Drill Press

A tilting head benchtop drill press for adjustable angled drilling.

The Shop Fox W1670 34" Floor Radial Drill Press boasts a 1/2 HP motor that smoothly powers the five spindle speeds ranging from 550 - 3000 RPM.

The headstock can be tilted 45° left, 90° right, and slid forward or backward over the column allowing you full adjustability.

To make sure that you get the best use of the 9-3/4" diameter table, the drill press features rack-and-pinion elevation controls—adjustable 24-1/2" vertically, 90° tilt (left and right) and is capable of 360° rotation around the column.

The W1670 can easily drill holes through plastic, fiberglass, and composites and has a maximum capacity to drill through a half inch of steel without bogging down.

The JT33 keyed drill chuck is fitted to the JT-33 spindle taper and offers up to 3-1/4" of travel. The chuck accepts drill bits from 1/16"–5/8". You can set the adjustable threaded depth stop for predetermined and repeatable drilling.

Like all Shop Fox drill presses, the W1669 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1669 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drill press may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 Factory

CSA certified

SPECIFICATIONS:

  • Motor: 1/2 HP, single-phase, 120V, 4.7A
  • Swing: 34"
  • Drill chuck: 1/16"–5/8"
  • Drilling capacity: 1/2" mild steel
  • Spindle taper: JT-33
  • Spindle travel: 3-1/4"
  • Number of speeds: 5 (550–3000 RPM)
  • Column diameter: 2.79"
  • Table size: 9-3/4" dia.
  • Table swing: 360 degrees
  • Table tilt: 90 degrees in both directions
  • Head tilt: 45 degrees left, 90 degrees right
  • Footprint: 11" W x 11" L
  • Overall size: 14" W x 32" D x 64-1/2" H
  • Approximate shipping weight: 147 lbs.

FEATURES:

  • Two-year warranty!!
  • Horizontal sliding headstock
  • Threaded depth stop
  • Table has lock levers
  • Cushioned grip quill handles
  • Crank handle operated rack-and-pinion vertical table movement
  • Radial design allows angle drilling
  • Precision-ground cast-iron table
