Item# G0781 Model# G0781

Grizzly G0781 - 4" x 18" 3/4 HP Mill/Drill

4" x 18" 3/4 HP Mill/Drill-img-0
4" x 18" 3/4 HP Mill/Drill-img-1
4" x 18" 3/4 HP Mill/Drill-img-2
4" x 18" 3/4 HP Mill/Drill-img-3
4" x 18" 3/4 HP Mill/Drill-img-4
4" x 18" 3/4 HP Mill/Drill-img-5
4" x 18" 3/4 HP Mill/Drill-img-6
$1,195.00
+$179.00 Freight
+$0.00  Oversize
  • Motor: 600W (3/4 HP)
  • Table size: 18 in. x 4-1/4 in.
  • Longitudinal travel: 11-13/16 in.
  • Cross travel: 5-1/8 in.
  • Spindle taper: R-8
  • Number of speeds: Variable
  • Max spindle to table: 11-1/2 in.
  • Max spindle to column: 6-3/8 in.
  • Shipping weight: 167 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

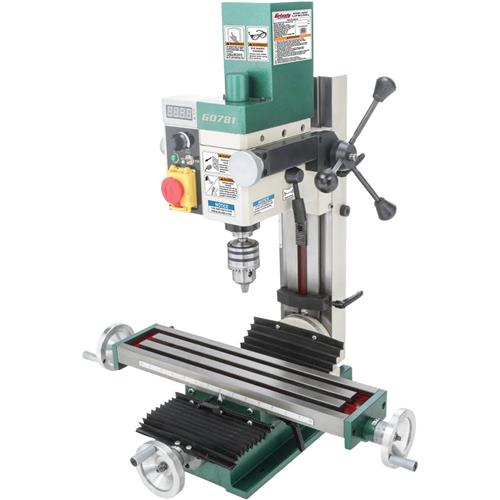

G0781 4" x 18" 3/4 HP Mill / Drill

An inexpensive, high-quality, and small bench top mill.

The combination of features on the G0781 4" x 18" 3/4 HP Mill / Drill makes quick work of whatever job is thrown at it.

This powerhouse comes equipped with a high-torque 3/4 HP motor, variable-speed controls, digital readout display, and fine downfeed control.

The headstock can be adjusted up and down the column and tilted 45° left or right relative to the table.

The a high/low quick-change gearbox has variable speeds. The low range covers 50–1000 RPM, while the high range covers 120–2000 RPM.

The 4-1/4" x 18" table provides ample space for sizable projects and larger vises.

Like all of the Grizzly Mills, the G0781 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0781 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill drill.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drill press are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase, 5A
  • Spindle taper: R-8
  • Spindle speeds: Variable, 50––2000 RPM
  • Max distance spindle-to-table: 11-1/2"
  • Max distance spindle-to-column: 6-3/8"
  • Table size: 4-1/4" x 18"
  • T-slots: 3 @ 1-1/4" centers, 7/16" wide
  • Table travel (longitudinal): 11-13/16"
  • Table travel (cross): 5-1/8"
  • Headstock travel: 7-1/16"
  • Head tilt: 45° L/R
  • Drilling capacity: 1/2" mild steel
  • End milling capacity: 1/2"
  • Face milling capacity: 1"
  • Overall size: 26-1/2" W x 20-1/2" D x 31" H
  • Approximate shipping weight: 167 lbs.

FEATURES:

  • Fine downfeed control
  • High/low geared drive
  • Digital readout display
  • Adjustable depth stop
  • Rubber chip guards on ways
  • Precision-ground dovetail column
  • R-8 spindle
  • Safety shut-off button
