Please note this is a special order item; 50% down payment is required at time of order and there is a six month lead time. Please call 360-734-1540 for details.

SB1071F 42" x 212" Big Bore Lathe

A custom, high-torque lathe providing maximum cutting power.

With an extra-large 9" spindle bore and inside/outside spindle noses for mounting chucks on both sides of the headstock, these lathes can handle monster-sized workpieces such as large-diameter oil pipes or hydraulic cylinders.

Each is exquisitely built with ultra-tight tolerances with the headstocks and gearboxes assembled in a laboratory-like environment to ensure absolutely pristine bearings and fittings for a lifetime of rugged use.

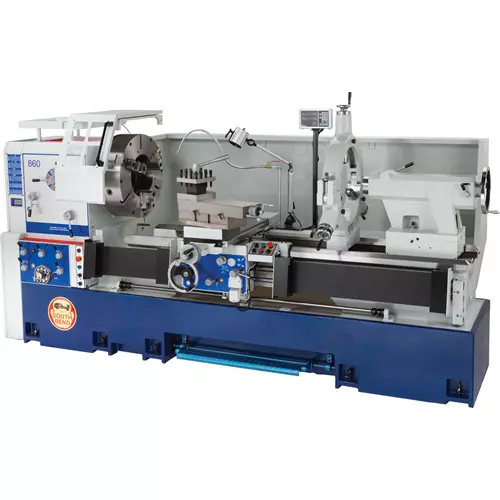

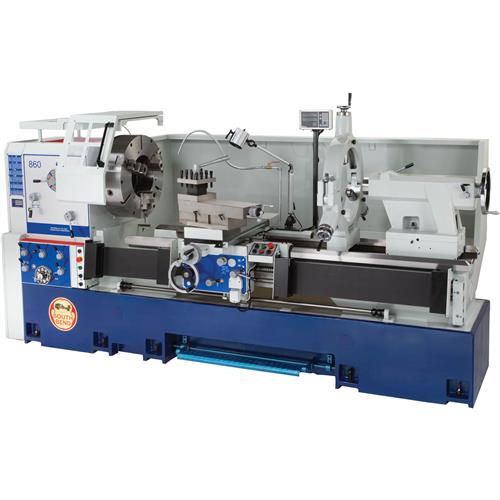

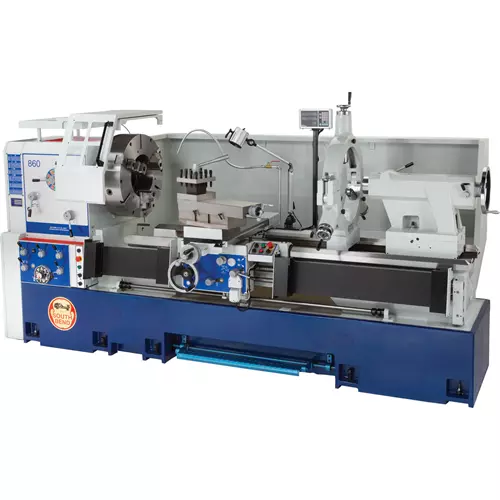

The SB1071F is shown with optional accessories.

Each lathe is custom-built to order. This allows you to select (and pay for) only the accessories you need and you'll benefit from having extremely large chucks precision-fitted at the factory and already dialed in when your machine arrives.

Like all South Bend lathes, it comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The South Bend Customer Service and Technical Support Teams are U.S.-based.

SPECIFICATIONS:

• Spindle motor: 30 HP
• Swing over bed: 42"
• Distance between centers: 212"
• Swing over cross slide: 32"
• Swing over gap: 54"
• Cross slide travel: 18.9"
• Compound rest travel: 13"
• Spindle nose: A2-15
• Spindle bore: 9"
• Spindle taper: MT#7
• Spindle speeds: 12, 6–500 RPM
• Tailstock taper: MT #6
• Tailstock barrel travel: 10"
• Inch threads: 2–28 TPI
• Metric threads: 0.8–14mm
• Longitudinal feed range: 0.05–0.7mm/rev
• Cross feed range: 0.025–0.35mm/rev
• Leadscrew diameter and pitch: M45 x 2 TPI
• Tool shank: 32mm x 32mm
• Rapid traverse Z/X axis: Z-Axis 3.7m/min, X-Axis 1.8M/min
• Bed width: 20"
• Overall dimensions: 69" x 286"
• Net weight: 14,991 lbs.

FEATURES:

• Enclosed universal gearbox for cutting inch, metric, modular, and diametral pitches
• 2-Speed tailstock gearbox for large-diameter end drilling
• Meehanite® castings with induction-hardened ways
• Fagor DRO
• Magnetic motor brake and mechanical hand brake
• Foot brake
• Safety chuck guard with micro-switch shut-off
• Complete coolant system with built-in reservoir
• Threading dial indicator headstock
• Double clamping tailstock
• 4-Position apron stop

OPTIONAL ACCESSORIES:

• Chuck
• Steady rest
• Quick-change tool post

Please contact South Bend Technical Support at (360) 734-1540 to discuss your options.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
