Item# G0555XH Model# G0555XH

Grizzly G0555XH - 14" 1-3/4 HP Extreme Series Resaw Bandsaw

14" 1-3/4 HP Extreme Series Resaw Bandsaw-img-0
14" 1-3/4 HP Extreme Series Resaw Bandsaw-img-1
14" 1-3/4 HP Extreme Series Resaw Bandsaw-img-2
14" 1-3/4 HP Extreme Series Resaw Bandsaw-img-3
14" 1-3/4 HP Extreme Series Resaw Bandsaw-img-4
$1,075.00
+$129.00 Freight
+$0.00  Oversize
List Price: $1,150.00
You Save: $75.00 (7%)
Buy now! Sale ends 12/2/20
  • Motor: 1.75 HP
  • Max cutting width: 13-1/2 in.
  • Max cutting height: 12
  • Table size: 21-3/4 x 16-1/8 in.
  • Wheel type: Computer-Balanced Cast Iron
  • Blade size: 105 in.
  • Quick blade change: Yes
  • Overall height: 78 in.
  • Shipping weight: 337 lbs.

Size

14" 17" 19" 21" 24"

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Videos
Overview

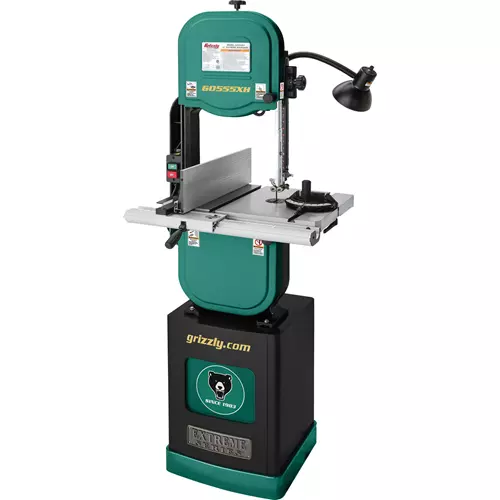

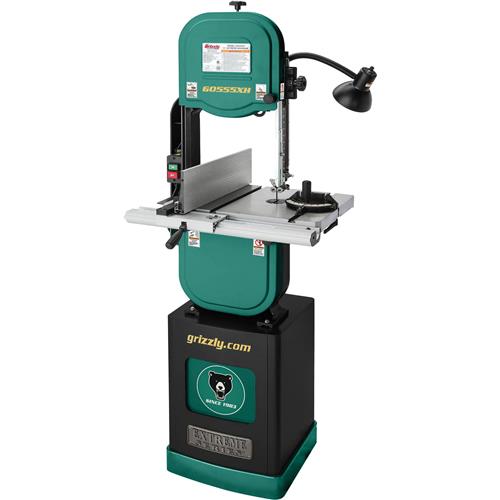

G0555XH 14" 1-3/4 HP Extreme Series Resaw Bandsaw

With a 1-3/4 HP motor and a full 12" resaw capacity, the G0555XH is not your average 14" bandsaw.

It adds 6" resaw capacity to Grizzly's popular line of G0555 series 14" bandsaws, which set the industry standard for price and performance. With ball-bearing upper and lower blade guides, following cut lines and patterns almost feels like the saw is on auto-pilot.

The added capacity of the G0555XH allows you to cut thicker sections of wood into smaller sections and veneers than what would be possible with most other 14" bandsaws. With a powerful 1-3/4 HP motor and a taller upper frame, the G0555XH can resaw up to 12" thick material without the need to add an expensive riser kit.

The G0555XH has a large 6" by 21-3/4" precision-ground cast-iron table and rack-and-pinion guidepost. The table tilts up to 45° for angled edge cuts. Built on a heavy-duty stand with computer-balanced cast-iron wheels to eliminate vibration, the closed cabinet design provides storage for tools and accessories including the resaw fence and miter gauge.

The G0555HX comes wired for 110V, but can easily be rewired to take advantage of 220V wiring if your shop has it. The 4" dust port hooks up to both portable/wall mount and large dedicated dust collection systems.

This Bandsaw comes with a 3/8" 6 TPI hook blade. Additional blades and replacement parts for service and repair are available online for delivery from the Grizzly Parts Department in Missouri.

The G0555HX is covered by a 1-year warranty covering factory defects and replacement parts. The warranty does not cover consumable parts such as blades. Product support for the bandsaw is provided by a US technical support team.

Made in an ISO 9001 factory

Certified to CSA & UL standards

SPECIFICATIONS:

  • Motor: 1-3/4 HP, 110V/220V (prewired 110V), single-phase, 15A/7.5A
  • Max. cutting width left of blade: 13-1/2"
  • Max. cutting height (resaw capacity): 12"
  • Table size: 16-1/8" x 21-3/4"
  • Table tilt: 5° left, 45° right
  • Floor-to-table height: 44-5/8"
  • Blade guides: Ball-bearing, upper & lower with thrust bearings
  • Blade size: 104" - 105" (1/8" - 3/4" wide)
  • Blade speed: 3000 FPM
  • Dust port size: 4"
  • Overall dimensions: 26" W x 31" D x 78" H
  • Footprint: 16" x 18"
  • Approximate shipping weight: 337 lbs.

FEATURES:

  • Precision-ground cast-iron table
  • Cast-iron frame with heavy-duty stand
  • Includes extruded-aluminum resaw fence and miter gauge
  • Fence scale with magnifying window
  • Fence adjustable for blade lead
  • Includes 3/8" 6-TPI hook blade
  • Computer-balanced cast-iron wheels
  • Quick-release blade tension
  • Work light
