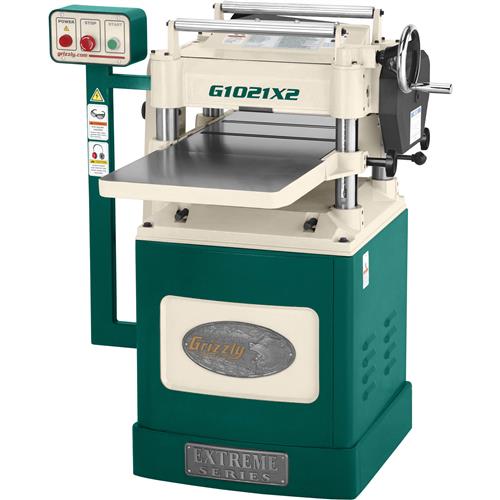

G1021X2 15" 3 HP Extreme Series Planer with Helical Cutterhead

Maximize the quality of finish straight from the planer.

Using the G1021X2 3 HP Planer will save time and effort by quickly flattening and smoothing rough lumber.

The G1021X2 features a 15", 4-row helical cutterhead complete with 52 indexable inserts that can each be rotated three times to expose new, sharp cutting edges.

The indexable carbide inserts are positioned along a helical pattern with the cutting edges at a slight angle to the workpiece. This angle allows for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.

The G1021X2 features a powerful 230-volt, 3 horsepower motor to power through cuts up to 3/32" deep at full width or 1/8" deep on material up to 6” wide.

Plane material from 3/16" to 6" thick with ease and choose between either 16 or 28 feet per minute feed rates for the perfect finish.

The precision-ground cast-iron table travels smoothly up and down on the heavy-duty 4-column supports and can be firmly locked in place for operation.

The G1021X2 offers additional features such as extra-large ball bearing return rollers, a large side-mounted handwheel, cabinet-style stand, pedestal-mounted control panel, magnetic switch with thermal overload protection and powder coated paint for years of protection.

Like all Grizzly planers, the G1021X2 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G1021X2 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the planer are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS

• Motor: 3 HP, 230V, single-phase, 12A
• Maximum stock width: 15"
• Maximum stock thickness: 6-1/8"
• Minimum stock thickness: 3/16"
• Minimum stock length: 6"
• Maximum cutting depth: 1/8"
• Cutterhead type: 4-row helical, 52 inserts
• Insert size, type: 15mm x 15mm x 2.5mm, indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: 16, 28 FPM
• Table size with extensions: 15" x 48"
• Dust port size: 4"
• Footprint: 21-1/2" x 22-1/2"
• Overall dimensions: 37" W x 48" D x 44" H
• Approximate shipping weight: 553 lbs.

FEATURES:

• Pedestal-mounted control panel
• Board return rollers
• Precision-ground cast-iron table and extension wings
• Adjustable bed rollers
• Magnetic safety switch with thermal overload protection
• Anti-kickback fingers
• Four-column support with table locks
