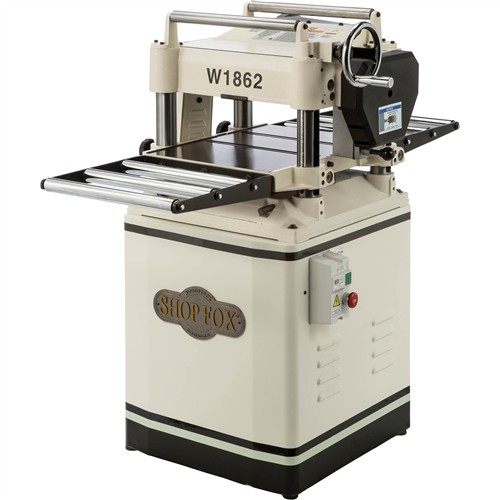

W1862 Shop Fox 15" 3 HP Planer
Produced in a factory renowned for innovation and dependability, this 15" Planer with a three-knife cutterhead has all the features you’d expect in a top-quality planer, but at a surprisingly affordable price.
Standard features include two-speed gear box with oil-bathed gears, magnetic switch with overload protection, precision-ground bed with bed rollers, board return rollers, and 4 heavy-duty support columns with dual table locks for rigid and accurate performance.
Made in an ISO 9001 factory
- Motor: 3 HP, 240V, 15A, single-phase
- Maximum cutting width: 15"
- Maximum cutting height: 6"
- Minimum stock thickness: 3/16"
- Minimum stock length: 8"
- Maximum depth of cut: 1/8"
- Feed rate: 16 FPM & 20 FPM
- Cutterhead diameter: 3"
- Knives: 3 HSS (15" x 1" x 1/8")
- Cutterhead speed: 5000 RPM
- Infeed rollers: solid serrated steel
- Outfeed rollers: knurled steel
- Table size: 15" x 20"
- Approximate shipping weight: 541 lbs.
- Two-year warranty!!
- Precision-ground cast-iron table
- Ball bearing infeed and outfeed extension rollers
- Magnetic switch overload protection
- Locking table
- 4" Dust port
- Triple V-belt driven cutterhead
- 2-Speed chain-driven automatic feed rollers
- Hardened anti-kickback fingers
- CSA Certified
