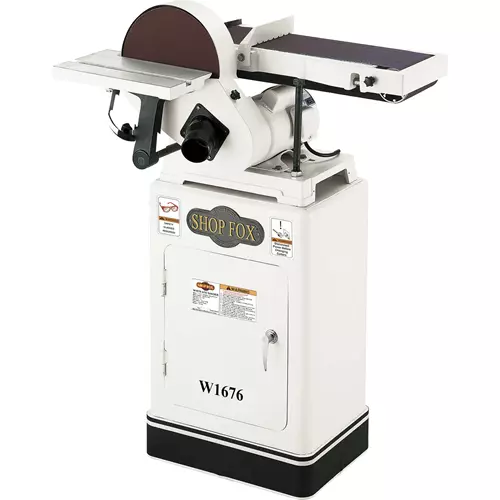

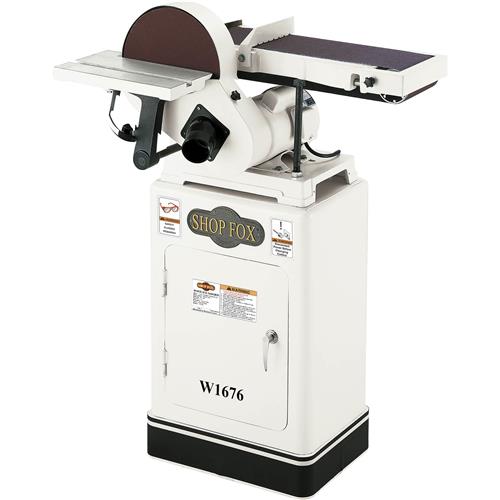

W1676 Shop Fox 6" Belt / 10" Disc Combo Sander

A professional-grade sander supplying professional results.

The W1676 6" Belt / 10" Disc Combo Sander from Shop Fox bridges the large gap between the bench-top models and the more expensive industrial models.

The 6" x 48" sanding belt tilts 90° and can be used in both horizontal and vertical positions, or any angle between, based on your needs. For a full range of replacement belts for the W1676, shop here.

The back stop supports workpieces on the belt sander in any position.

The 6"-wide by 12-1/4"-long cast-iron worktable tilts from 0° left to 45° right and supports workpieces when using the 10" sanding disc. Replacement PSA sanding discs are available in a variety of grits.

A built-in storage shelf holds plenty of replacement belts and discs.

The W1676 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V, prewired 110V, single-phase, 14A/7A
• Sanding belt size: 6" x 48"
• Sanding belt speed: 1900 FPM
• Belt sanding head tilt: 0–90°
• Platen size: 6-1/4" x 17"
• Sanding disc diameter: 10"
• Sanding disc speed: 2420 RPM
• Sanding disc type: PSA
• Disc sanding table size: 6" W x 12-1/4" L
• Disc sanding table tilt: 0°–45°
• Number of dust ports: 2
• Dust port sizes: 2" and 2-1/2"
• Footprint: 15" x 16-1/2"
• Overall size: 30" W x 24" D x 56" H
• Approximate shipping weight: 168 lbs.

FEATURES:

• Two-year warranty!!
• 10" computer-balanced cast-iron disc
• Precision-ground cast-iron table
• Quick change belt release
• Cabinet-style stand with powder-coated finish
• Heavy-duty miter gauge
• Ball bearing construction
