Overview

Get two machines in one with this combination planer/moulder!

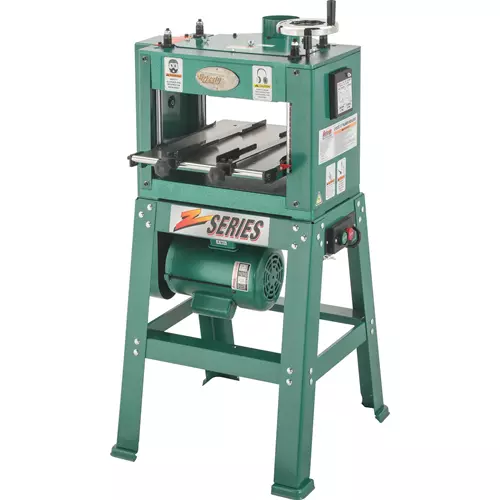

If you make your own moulding and casings, or would like to, the G1037Z 13” Planer / Moulder will save you valuable shop space, time and money. Use it to plane your stock to the desired thickness, then easily convert it to a moulder to create nearly any profile you can imagine.

The 1-1/2 HP TEFC motor provides plenty of power for planing or moulding while the 4" dust port allows easy connection to a dust collector. The undermount motor makes for convenient knife changes, while the easily adjustable guides and dual moulding fences make creating architectural moulding and casings a breeze.

Planing max capacity is 1/8" deep and up to 13" wide.

Moulding max capacity is 3/4" deep and up to 4-9/16" wide.

This dual-purpose machine combined with a low price and its capability will more than pay for itself —and fast!

Like all Grizzly machines, the G1037Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Knives and other consumables are not covered by the warranty.)

The G1037Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The Grizzly Technical Support team is U.S. based. Parts and accessories are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110V/220V (prewired 110V), single-phase, 15/7.5A
  • The maximum cutting width is 13".
  • The maximum lumber height is 6".
  • The maximum cutting depth is 1/8" (planing).
  • The maximum profile depth is 3/4" (moulding).
  • The maximum width capacity is 4-9/16" (moulding).
  • The planing feed rate is 24 FPM.
  • The moulding feed rate is 12 FPM.
  • 3 HSS knives at 13" x 5/8" x 1/8"
  • Cutterhead speed: 5000 RPM
  • Footprint: 22-1/4" x 21-1/4"
  • Approximate shipping weight: 236 lbs.
  • FEATURES:

  • Precision-ground cast-iron table
  • 4" dust port
  • Rubberized steel feed rollers
  • Powder coated paint
  • Includes floor stand
  • Reviews

    24 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

    Anonymous Reviewer
    07/27/2020 8:01:30 PM

    Great piece of machinery. Only used home bought machines in the past,but not from here on out
    Also not much more expensive.

    Eric H
    So far so good! 07/08/2020 1:51:33 PM

    I bought this to replace a Dewalt 13" Planer that had seen its best years. I have had this for about 3 months now. It was a little bit of work to get it put together just because it heavy and hard to maneuver but once it was put together it has performed as it should. The number 1 thing this planer has over the dewalt is that it moves lumber through the machine faster than the dewalt. It cut my planning time down significantly, cant say an actual number because I have never timed it out, but I definitely think its faster.

    Anonymous Reviewer
    11/07/2019 8:51:20 PM

    No feedback given

    mark L
    10/09/2019 9:05:35 PM

    great machine very quiet compared to benchtop models does a great job, but the assembly instructions really suck. shipping sucks too nothing but problems with the shippers had to take off 3 days just to have to pick it up myself at the dock.

    Anonymous Reviewer
    A real step up from a portable planer. 07/07/2019 11:56:04 PM

    I've had this machine about a month and am really pleased with it. I was considering a 13" portable but am so glad I went with this. I run a small semi pro shop and am not swimming in space so the size is perfect. It's much quieter (not quiet, but quieter) than a portable. I like that it doesn't have additional in and out feed tables to take up space. No snipe either. And I have the moulding option if I should ever want it. 5" dust port option would be nice but the dust collection is good as is.

    Anonymous Reviewer
    02/20/2019 5:45:44 PM

    Came with broken sprocket and drive chain. Promptly fixed and working

    Anonymous Reviewer
    02/15/2019 1:58:59 PM

    Bought this to do moldings. It does a great job. Bought movable base also so it moves out of my way when not needed. I now have a smaller shop so floor space is at a premium. I think it was a good value also.

    Anonymous Reviewer
    10/18/2018 11:56:22 PM

    This is a great little planer/moulder for the home hobbyist woodworker. It planes pretty quickly, but really struggles if you try to take off more than 1/16" in one pass. Hooked up to a cyclone dust collector with large shop vac, and the machine's outfield roller kept getting jammed with chips if I ran two 6" pieces through at the same time. This would cause the boards to get stuck, and then you have to lower the table turn it off and vacuum it out and unclog it before you continue. Running multiple rooms worth of moldings was a little painstaking. This is probably due to my dust collection setup. This machine really demands a multiple horse power impeller dust collector. Nevertheless, it planes beautifully smooth, and with sharp molding knives, cuts profiles perfectly. The dual fences do a good job of keep everything lined up. Raising and lowering the table is speedy and smooth. The machine is very solidly built to last. It's extremely stable on the ground, even when shoving 16 foot pieces through it.

    Anonymous Reviewer
    very happy 10/17/2018 1:48:52 PM

    planed some curly maple and ash boards. planed them smooth with very little snipe at end of boards.drum sander took care of snipe in one pass. have not used for making moulding yet.very good machine for the money.

    Anonymous Reviewer
    08/20/2018 11:48:55 PM

    No feedback given

    tomypace
    07/05/2018 4:43:24 AM

    Love this machine, assembled it in a breeze this and the jointer I got are difeteley great adddictions to my little shop love them all ( have 9 grizzly's and adding soon ) waiting on edge belt on backorder now can't wait to see that.

    Anonymous Reviewer
    good,heavy,well built machine 03/07/2018 11:43:21 AM

    More machine than I really need but should not fail as my previous light duty thickness planer did.

    Timothy K
    Great product but I need some advice on it. 02/15/2018 10:31:27 PM

    I have had this machine for a couple years now and I love it. I bought it at an auction for about $450, but it looked as though it had just come off the showroom floor. It has definitely held up well until about 6 month ago. The gears on the height adjustment seem to be binding up. I use silicone lubricant on the gears about monthly and this helps for about a month or so and then I have to do it again, which is understandable. They are gears, they need lubricant. I get that. But now the height adjustment is completely seized up. Lubricant isn't working. I thought I might post here before tearing this thing down to get some suggestions as to what my problem is. I was thinking maybe some surface rust somewhere or a wood chip in one of the gears. I do not look forward to tearing this thing down because it has so many parts and I am no mechanic, but I am at the point of what do I have to lose. Thank you.

    Anonymous Reviewer
    02/02/2018 2:45:03 AM

    Love the machine, but miss my catalogues. Can you please send me a nice fat one?

    Anonymous Reviewer
    Great machine! 11/14/2017 1:39:51 PM

    No feedback given

    Anonymous Reviewer
    As ordered and described, quality tool 11/05/2017 8:34:39 PM

    Havent used the moulder blades yet but am sure they are going to work as well as the planer, which is excellent. First project is almost done and it couldn't have done better. The mobil base unit I added gets it out of the workspace quickly and is solid. happy happy.

    Anonymous Reviewer
    great planer 10/31/2017 6:18:53 PM

    great planer lumber came out great I like the size for my shop

    Anonymous Reviewer
    07/03/2017 1:42:26 PM

    No feedback given

    Roland M
    02/07/2017 3:55:37 PM

    No feedback given

    Wayne S
    Heavy duty ! 01/28/2017 7:51:52 PM

    This machine is built very solid. It does not vibrate around while in use. It performs like a larger planer. It produces a smooth uniform surface on hardwoods and softwoods alike. I have had this machine for a short period of time and have not produced any molding yet. Although, I plan on using it to make custom molding. I am confident that it will produce quality moldings judging by it's performance as a planer.

    Anonymous Reviewer
    01/26/2017 11:30:17 PM

    We so far really enjoy working with the planer/moulder. We have yet to figure out how to use the moulder.

    Anonymous Reviewer
    Wonderful 01/25/2017 11:23:11 PM

    I have used this item many times and have had a perfect finished product every time

    LuckyLogman
    Great product, Heavy Duty and Long Lasting 10/10/2016 6:51:23 PM

    I have had three of these machines. The first one was bought in 1999 and is still in uses today. The second in 2002, both of these were the older model with the motor on the top. The third was in 2007. I use them for moulding never for planning. I make custom siding, I run about 100000 to 125000 feet of siding a year. I replaced the 2002 model with the 2007 just because of the motor placement I added a 3hp motor. The 1999, having well over a million feet of material run thru it, will be replace some time next year. The gearbox is just wore out. I will replace it with a 1037Z, I will not consider any other brand or model. 2007 still running very well. This design in just bullet proof.

    HobelmansFineWoodworks
    Nice Planer 10/10/2016 2:09:28 AM

    I bought this planer about 6 months ago. It has a much better feel than any bench top i have used. I had the dewalt 735 and this just seems much better built, its heavier and has more power for sending rough sawn lumber through it.
    I have not used it as a molder yet but also liked that i will have that capacity when i get to the final stages of my renovation. I will use this machine to create every bit of woodwork throughout the house.
    I recently tried the other gear set to slow the feed rate down however. I was planing some air dried red oak that i milled with some figure, my knives arent to sharp anymore and i was getting alot of chipout. Swapping the gears took about a minute and no more tearout!
    You will not be disappointed if you buy this machine. No its not a 3 or 5hp machine but the motor does not overload and pop the breaker like my dewalt did every time i was trying to plane roughsawn.
