Item# G0819 Model# G0819

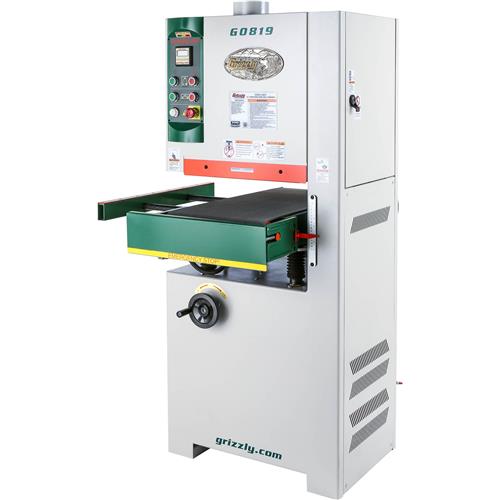

Grizzly G0819 - 15" 5 HP Open-End Wide-Belt Sander

$6,395.00
+$279.00  Freight
+$0.00  Oversize

G0819 15" 5 HP Open-End Wide-Belt Sander

Double your sanding capacity within a small footprint.

The G0819 15" 5 HP Open-End Wide-Belt Sander is for those looking to maximize efficiency in their wood shop.

With a footprint of 19-1/2" x 27-1/2", this heavy-duty sander is capable of sanding a 30" wide workpiece in two passes. That’s a lot of capacity for a smaller sander!

It takes less than 30 seconds to change out the 16" x 48" sanding belts. Simply open the left access door, release the sanding belt tension, swap in the belt you want, engage the “tension”, and close the door.

With a focus on rigidity and production work, the G0819 will have zero flex on a heavy pass. There is even an adjustable side support that slides out from the side of the machine, eliminating the need for aftermarket supports.

The three conveyor speeds of 16.4, 23, and 32.8 feet per minute allow for adjustment based on the type wood being sanded.

The 5 HP main motor only draws 30 amps. Factoring in the 1/2 HP feed motor, this machine still only requires a minimum circuit size of 50 amps!

The G0819 has pneumatic oscillation speed control and a pulse-jet cleaning system to keep the electric oscillation sensor dust-free.

Other quality features such as an amp meter, micro-adjustable graphite-felt platen, and emergency stop plate makes this a high-caliber machine.

Like all Grizzly wide-belt sanders, the G0819 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0819 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS

  • Sanding belt motor: 5 HP, 220V, single-phase, 30 A
  • Conveyor motor: 1/2 HP, 2.8A
  • Air requirement: 75 PSI, 2 CFM
  • Maximum board width: 15" single pass, 30" double pass
  • Maximum board thickness: 6"
  • Minimum board length: 12-5/8"
  • Sanding belt size: 16" x 48"
  • Sandpaper speed: 2300 FPM
  • Conveyor speed rate: 16.4, 23, 32.8 FPM
  • Conveyor table length: 24"
  • Platen type: 1-3/4" x 15-3/8" Graphite pad
  • Dust port size: 5"
  • Footprint: 19-1/2" x 27-1/2"
  • Overall size: 29-1/8" W x 38-1/2" D x 64-1/2" H
  • Approximate shipping weight: 930 lbs.

FEATURES:

  • Quick sandpaper changes
  • Pneumatic belt tracking and tensioning
  • Built-in pneumatic regulator/water separator
  • Micro-adjustable graphite-felt platen
  • Handwheel-controlled table elevation
  • Inch/metric thickness scale
  • Two rubber pressure rollers
  • Digital amp/load meter
  • Disc brake for emergency stops
  • Safety shut-off bar
  • 100- and 180-Grit sanding belts included
