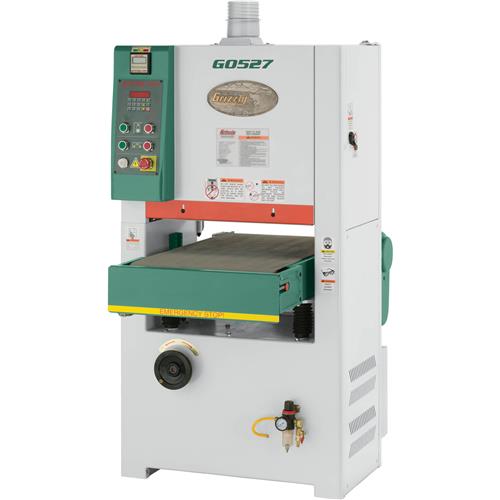

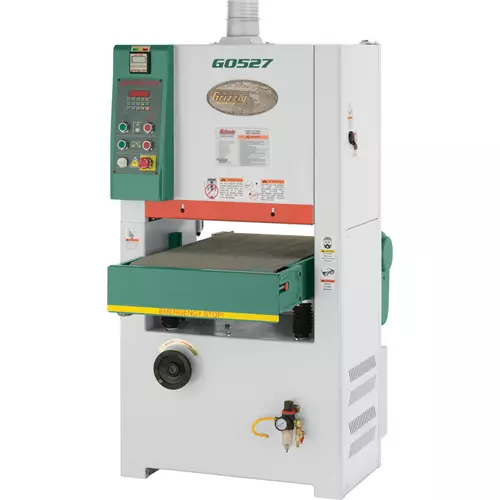

G0527 18" 5 HP Wide-Belt Sander

High-performance sanding made compact and affordable.

The Grizzly G0527 18" Wide-Belt Sander redefines what's possible in a compact and budget-friendly package. Here's what makes it stand out:

• Unmatched Precision & Control: The digital control panel and four rubber pressure rollers ensure perfect sanding results on workpieces as small as 9" long x 1/8" thick, ideal for detailed projects.
• Exceptional Performance: The powerful 5 HP motor delivers superior sanding power, while variable conveyor speeds (16-33 FPM) and a sanding belt speed of 3500 FPM optimize sanding for various materials.
• Digital Convenience: Easily monitor key parameters with the digital control panel featuring an amp meter for precise operation.

Designed for Efficiency & User-Friendly Operation

• Three Independent Motors: Dedicated motors for the sanding drum, conveyor belt, and table height adjustments provide optimal performance and control.
• Disc Brake for Safety: The disc brake ensures quick and safe stopping whenever needed.
• Pneumatic Belt Tensioning: Effortlessly maintain perfect belt tension for consistent sanding results.
• Reduced Dust: The dustproof photoelectric eye and 4" dust port work together to maintain a clean work environment.

The G0527 includes 100- and 150-grit sanding belts. A full range of replacement belts are available.

An outstanding list of features at an amazing price make this one of the best deals on the wide-belt sander market!

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 30A
• Conveyor feed motor: 1/2 HP, 7A
• Elevation motor: 1/3 HP, 3A
• Maximum board width: 17-1/2"
• Maximum board thickness: 6"
• Minimum board length: 9"
• Minimum board thickness: 1/8"
• Conveyor speed: 16, 23, 33 FPM
• Sanding belt speed: 3500 FPM
• Sanding belt size: 18-1/2" x 48"
• Sanding belt oscillations: 1/2–5/8"
• Air requirement: 57–75 PSI, 2 CFM
• Footprint: 19-1/2" x 16-3/4"
• Overall dimensions: 37" W x 30" L x 57" H
• Approximate shipping weight: 1008 lbs.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0527 comes with a 1-year warranty.

The G0527 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

Made in an ISO 9001 factory
