Grizzly G0407 - 18" 5 HP Extreme Series Wide Belt Sander
Pricing Information

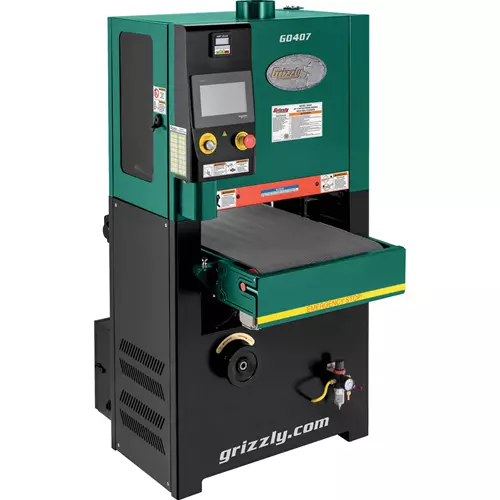

G0407 18" 5 HP Extreme Series Wide-Belt Sander
Level-up woodworking production with a digitally controlled wide-belt sander.
Get your professional woodworking shop up to full speed by adding this wide-belt sander to your equipment lineup.
Fitted with a 5 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.
Special options on this 18" wide-belt sander include user-friendly touch-screen controls, thickness sensor, clear side window, and interior lighting.
This sander is ready to support your daily shop goals whether you are panel sanding cabinet doors, preparing hardwood flooring, or smoothing out custom millwork.
FEATURES & BENEFITS:
- Touch screen controls for motors, sanding drum, conveyor, and table elevation
- Material thickness sensor provides a baseline reading and is touch-screen adjustable in increments of 0.005"
- Plexiglass side window and interior lights for easy viewing of sanding belt tracking
- Variable-speed feed conveyor for adaptability and optimal sanding results
- Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
- Amp/load meter to prevent excessive loads while maximizing machine capacity
- Built-in air regulator/water separator to protect pneumatic components
- Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
- Disc brake, emergency stop bar, and stop switch for optimal safety
SPECIFICATIONS:
- Main motor: 5 HP, 220V, single-phase, 30A
- Conveyor feed motor: 1/2 HP, 2.73A
- Table elevation motor: 1/3 HP, 3A
- Maximum board width: 17-1/2"
- Maximum board thickness: 6"
- Minimum board length: 10"
- Minimum board thickness: 1/8"
- Conveyor speed: 16.4–32.8 FPM
- Sanding belt speed: 3500 FPM
- Sanding belt size: 18-1/2" x 48"
- Sanding belt oscillations: 35-40 OPM
- Air requirement: 75 PSI
- Footprint: 29-1/2" x 16-1/2"
- Overall dimensions: 31-1/2" W x 38" D x 57" H
- Approximate shipping weight: 993 lbs.
A cost-effective 18" 5 HP wide-belt sander offering unique features to boost shop productivity.
Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.
Comprehensive U.S.-Based Support:
Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0407 safeguards your investment, offering peace of mind and ensuring long-term reliability.
Made in an ISO 9001 factory
