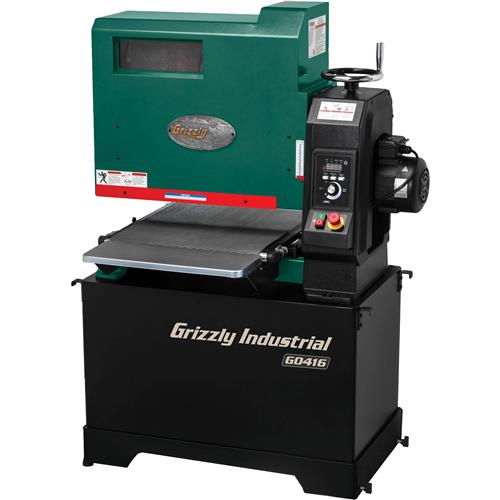

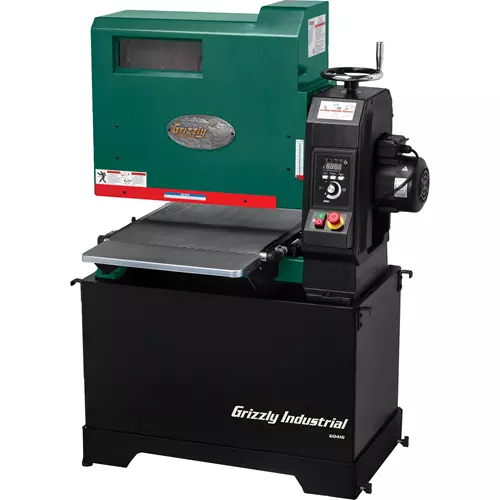

G0416 20" 3 HP Open-End Wide-Belt Sander

Expand your sanding capacity and improve consistency with this affordable wide-belt sander.

This open-end sander is the perfect choice for small shops looking for an economical way to maximize sanding efficiency.

A digital display helps ensure accurate height adjustments for every sanding run, and the variable-speed, heavy-duty conveyor is adjustable based on material type and thickness.

The 3 HP wide-belt sander's open-end design provides flexibility for processing boards up to 40" wide with speed and precision, and a "sand smart" automatic function controls machine amps to protect from excessive current.

A specialized plenum chamber evenly distributes airflow and stablizes pressure for efficient dust removal, reducing clogging and improving overall collection performance.

Additional features include a mobile base for convenient movement, a conveyor viewing window, and LED lights for enhanced visibility.

Our 20" open-end wide-belt sander is competitively priced and ready to support your shop with exceptional quality results for panels, doors, tabletops, and additional workpiece types.

FEATURES & BENEFITS:

• Digital Display: View material height in inches/mm and adjust as needed.
• Variable-Speed Conveyor: The durable rubber conveyor belt is adjustable between 0-20 FPM.
• Open-End Design: Allows you to sand wider than the drum (up to 40”) by flipping your workpiece around and running a second pass.
• "Sand Smart" Load Sensing and Auto-Adjust Function: Prevents overload by automatically adjusting feed rate when excess load is detected.
• Dust Collection: Uses an air channel (called a plenum chamber) to provide consistent, even airflow to efficiently capture dust.
• Stand with Storage: Features a built-in stand with footpads and a compartment with a shelf for storing sanding belts.
• Bi-Directional 4" Dust Port: Offers versatility to suit your dust collection setup.
• Viewing Window: Allows for easy monitoring of sandpaper belt tracking.
• LED Lights: Mounted inside for better visibility during belt changes or maintenance.

SPECIFICATIONS:

• Main motor: 3 HP, 230V, single-phase, 12.5A
• Conveyor motor: 65W, 0.48A
• Maximum board width: 40"
• Maximum board thickness: 4"
• Minimum board length: 8"
• Sanding belt size: 48" L x 21" W
• Sandpaper speed: 2800 FPM
• Sanding belt oscillations per minute: 20
• Sanding belt oscillation stroke length: 5/8"
• Conveyor speed rate: 0-20 FPM
• Conveyor table length: 21"
• Dust port size: 4"
• Footprint: 37-1/2" x 22"
• Overall size: 43" L x 40" W x 60" H
• Approximate shipping weight: 660 lbs.

Get professional sanding results without busting your budget with this 20" 3 HP open-end wide-belt sander.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0416 comes with a 1-year warranty.

CSA certified and made in an ISO 9001 factory
