Item# G0513X2 Model# G0513X2

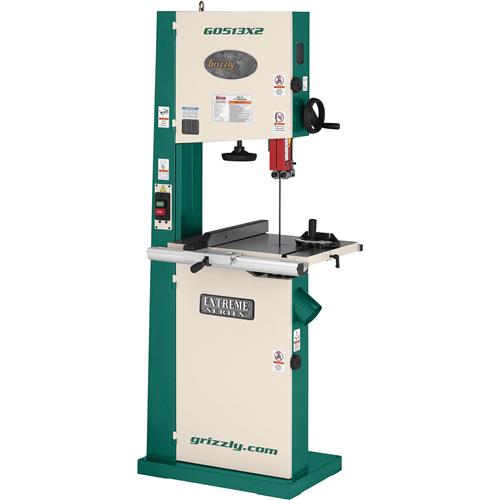

Grizzly G0513X2 - 17" 2 HP Bandsaw w/ Cast-Iron Trunnion

17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-0
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-1
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-2
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-3
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-4
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-5
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-6
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-7
17" 2 HP Bandsaw w/ Cast-Iron Trunnion-img-8
$1,250.00
+$129.00 Freight
+$0.00  Oversize
  • Motor: 2 HP
  • Max cutting width: 16-1/4"
  • Max cutting height: 12"
  • Table size: 23-5/8" x 17-1/4"
  • Wheel type: Computer-Balanced Cast Iron
  • Blade size: 130" - 131-1/2" (1/8" - 1" wide)
  • Quick blade change: Yes
  • Overall height: 73"
  • Shipping weight: 418 lbs.

Size

14" 17" 19" 21" 24"

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Videos
Overview

G0513X2 17" 2 HP Bandsaw w/ Cast-Iron Trunnion

From top to bottom, this bandsaw is built to perform.

The G0513X2 17" 2 HP Bandsaw features a heavy-duty cast-iron and double ball-bearing blade guides usually only found on machines costing much, much more.

The stout steel frame houses the heavy computer-balanced cast-iron wheels designed to minimize vibration during resaw operations.

The G0513X2 has a large 23-5/8" x 17-1/4" cast-iron table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table.

Power and capacity are just a part of why owners continue to give this bandsaw a solid 5-star rating.

The 2 HP motor powers through hardwoods with a 12-1/8" cutting height and 16-1/4" throat provide ample cutting capacity for most applications.

This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the 220V operation requirements. If you prefer 110V, refer to the Voltage Conversion instructions in the manual.

Like all Grizzly bandsaws, the G0513X2 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0513X2 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual provides full instructions on how to assemble and maintain your bandsaw.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the bandsaw are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A
  • Max. cutting width left of blade: 16-1/4"
  • Max. cutting height (resaw capacity): 12"
  • Blade guides: Ball-bearing with full enclosure protection
  • Bearings: Sealed and permanently lubricated
  • Table size: 23-5/8" x 17-1/4" x 1-1/2" thick
  • Table tilt: 5° left, 45° right
  • Floor to table height: 37-1/2"
  • Blade size: 131-1/2" (1/8" - 1" wide)
  • Blade speed: 1700 and 3500 FPM
  • Footprint: 27" L x 17-3/4" W
  • Overall size: 32" W x 32" D x 73" H
  • Approximate shipping weight: 418 lbs.

FEATURES:

  • Deluxe cast-iron fence with extruded aluminum resaw fence attachment
  • Magnifying window over fence scale
  • Precision-ground cast-iron table
  • Two 4" dust ports
  • Quick-change blade release/tensioner
  • Blade tension indicator
  • Micro-adjusting geared table
  • Computer balanced cast-iron wheels with polyurethane tires
  • Blade height scale measurement
  • Blade tracking window
  • Cast-iron table trunnions
  • Rack and pinion upper blade guide height adjustment
  • Includes 1/2" 6-TPI hook blade and miter gauge
