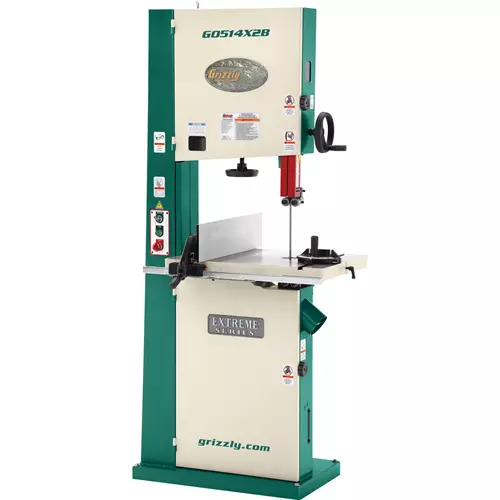

G0514X2B 19" 3 HP Extreme-Series Wood Bandsaw w/ Motor Brake

A fully-featured 19" bandsaw with serious capabilities.

The G0514X2B 19" 3 HP Extreme-Series Bandsaw is ready to handle your woodworking projects.

The table will tilt 5° left and 45° right to provide a wide range of cutting options. The positive stop allows thew table to be quickly and accurately returned to 0°.

This saw features a rack-and-pinion table tilt control with extra table support and an innovative resaw fence. The cast-iron table trunnions add additional weight for greater stability.

The electronic motor brake stops the blade in approximately 3 seconds—all with the simple push of a switch.

A clear blade tracking window allows you to observe the blade as you adjust the tracking controls to center the blade. For a full range replacement and resaw blades for the G0514X2B, shop here.

Additional features include a heavy-duty miter gauge, dual 4" dust ports to suck up all the sawdust, and double ball-bearing blade guides that are usually found on machines costing much more.

The G0514X2B manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 220V, single-phase, 12A
• Throat (max. width left of blade): 18-1/4"
• Resaw capacity: 12"
• Table size: 26-3/4" x 19" x 1-1/2" thick
• Table tilt: 5° left, 45° right
• Floor to table height: 37-1/2"
• Blade size: 143" long
• Blade widths available: 1/8"–1-1/4"
• Blade speeds: 1700, 3500 FPM
• Blade guides: dual ball bearing with full enclosure protection
• Overall size: 76" H x 36" W x 32" D
• Approximate shipping weight: 512 lbs.

FEATURES:

• Ball bearing blade guides
• Blade tension indicator
• Blade tracking window
• Quick change blade release/tensioning
• Fence with scale and magnifying window
• Micro adjusting geared table tilting mechanism
• Height scale measurement
• Deluxe cast-iron fence with extruded aluminum re-saw fence
• Computer Balanced cast-iron wheels with Grizzly bear head cut-outs
• Miter gauge
• Rack-and-pinion upper guide adjustment
• Rack-and-pinion table tilt mechanism
• Motor brake
• Cast-iron trunnion
• Includes 3/4" blade
• 1-year limited warranty

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
