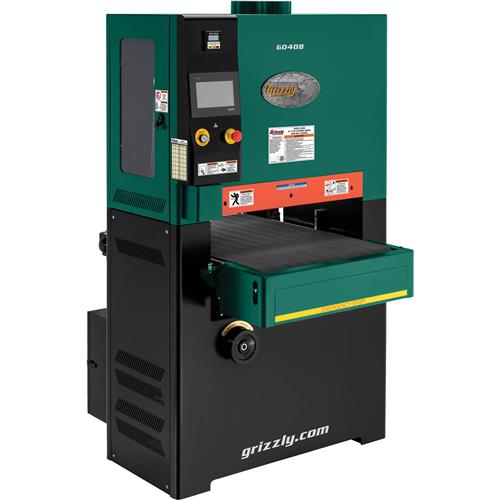

G0408 24" 10 HP Extreme Series Wide-Belt Sander

Robust sanding power in an adaptable wide-belt sander designed for production woodworking.

Get your professional woodworking shop up to full speed by adding this wide-belt sander to your equipment lineup.

Fitted with a high-powered 10 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.

Special options on this 24" wide-belt sander include user-friendly touch-screen controls, thickness sensor, clear side window, and interior lighting.

This sander is ready to support your daily shop goals whether you are finish sanding before applying a topcoat, batch sanding multiple board feet, or ensuring smooth surfaces for joinery.

FEATURES & BENEFITS:

• Touch screen controls for motors, sanding drum, conveyor, and table elevation
• Material thickness sensor provides a baseline reading and is touch-screen adjustable in increments of 0.005"
• Plexiglass side window and interior lights for easy viewing of sanding belt tracking
• Variable-speed feed conveyor for adaptability and optimal sanding results
• Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
• Amp/load meter to prevent excessive loads while maximizing machine capacity
• Built-in air regulator/water separator to protect pneumatic components
• Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
• Disc brake, emergency stop bar, and stop switch for optimal safety

SPECIFICATIONS:

• Main motor: 10 HP, 220V, single-phase, 50A
• Conveyor feed motor: 1 HP, 7A
• Table elevation motor: 1/3 HP, 3A
• Maximum board width: 24-3/8"
• Maximum board thickness: 6"
• Minimum board length: 10"
• Minimum board thickness: 1/8"
• Conveyor speed: 15-49 FPM
• Sanding belt speed: 3500 FPM
• Sanding belt size: 25" x 60"
• Sanding belt oscillations: 35-40 OPM
• Air requirement: 75 PSI
• Footprint: 39-1/2" x 19-1/2"
• Overall dimensions: 42" W x 50" D x 68" H
• Approximate shipping weight: 1533 lbs.

Streamline your shop's sanding operations with our 24" 10 HP wide-belt sander.

Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.

Comprehensive U.S.-Based Support:

Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0408 safeguards your investment, offering peace of mind and ensuring long-term reliability.

Made in an ISO 9001 factory
