Item: G0781 | Model: G0781
Image for G0781

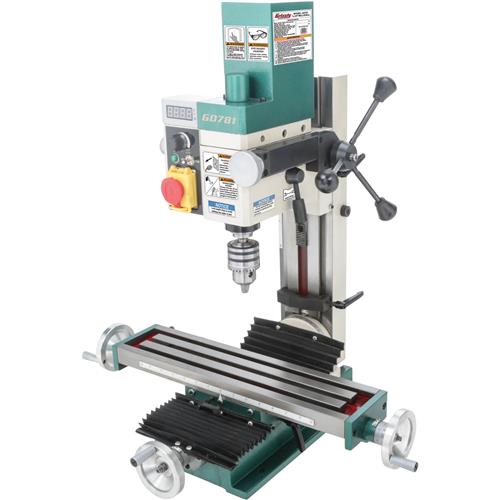

Grizzly G0781 - 4" x 18" 3/4 HP Mill/Drill

4.2 (37)
5
25
4
4
3
2
2
3
1
3
$1,495.00
  • Motor: 600W (3/4 HP)
  • Table size: 18 in. x 4-1/4 in.
  • Longitudinal travel: 11-13/16 in.
  • Cross travel: 5-1/8 in.
  • Spindle taper: R-8
  • Number of speeds: Variable
  • Max spindle to table: 11-1/2 in.
  • Max spindle to column: 6-3/8 in.
  • Shipping weight: 167 lbs.
Shipping

Accessories

All End Mills All End Mills
Image for T26485 58 Pc. Clamping Kit for 7/16" T-Slots Item# T26485 $96.95 Add Image for G7156 Premium Milling Vise - 4" Item# G7156 $146.95 Add Image for G9760 HSS TiN Coated 2 and 4 Flute End Mills, 20 pc. Set Item# G9760 $116.95 Add Image for G1646 12 Pc. Precision R-8 Collet Set Item# G1646 $125.95 Add Image for G9511 T-Slot Nuts, pk. of 4, 7/16" Slot, 3/8" - 16 Item# G9511 $10.50 Add
Shop All Accessories
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Specification Sheet Manual Parts List Buy Parts
Overview

G0781 4" x 18" 3/4 HP Mill/Drill

An inexpensive, high-quality, and small bench top mill.

The combination of features on the G0781 4" x 18" 3/4 HP Mill/Drill makes quick work of whatever job is thrown at it.

This powerhouse comes equipped with a high-torque 3/4 HP motor, variable-speed controls, digital readout display, and fine downfeed control.

The head can be adjusted up and down the column and tilted 45° left or right relative to the table.

The high/low quick-change gearbox has variable speeds. The low range covers 50–1000 RPM, while the high range covers 100–2000 RPM.

The 4-1/4" x 18" table provides ample space for sizable projects and larger vises.

Like all the Grizzly Mills, the G0781 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0781 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill/drill.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts and accessories for the drill press may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 3/4 HP, 110V, single-phase, 5A
  • Spindle taper: R-8
  • Spindle speeds: Variable, 50–1000 and 100–2000 RPM
  • Max distance spindle-to-column: 6-3/8"
  • Max distance spindle-to-table: 11-1/2"
  • Drilling capacity: 1/2" mild steel
  • End milling capacity: 1/2"
  • Face milling capacity: 1"
  • Head travel: 7-1/16"
  • Column tilt: 45° left/right
  • Table size: 4-1/4" x 18"
  • T-slots: 3 @ 1-1/4" centers, 7/16" wide
  • Table travel (longitudinal): 11-13/16"
  • Table travel (cross): 5-1/8"
  • Footprint: 14-1/2" x 8-1/2"
  • Overall size: 26-1/2" W x 20-1/2" D x 31" H
  • Approximate shipping weight: 167 lbs.

FEATURES:

  • Fine downfeed control
  • High/low geared drive
  • Digital readout display
  • Adjustable depth stop
  • Rubber chip guards on ways
  • Precision-ground dovetail column
  • R-8 spindle
  • 3–16mm JT3 drill chuck
  • Safety shut-off button
