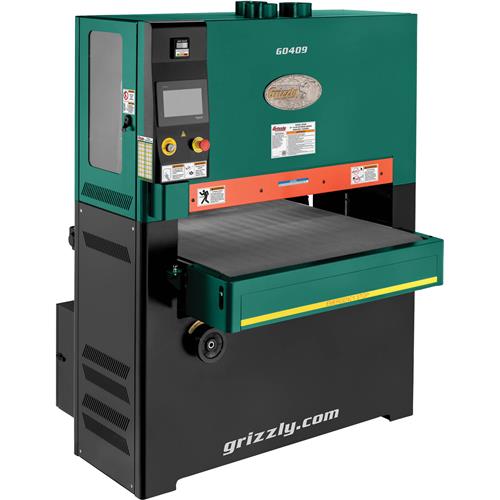

G0409 37" 10 HP Extreme Series Wide-Belt Sander

Upgrade your woodworking shop with this wide-belt sander designed to efficiently process large panels.

Get your professional shop up to full speed by adding this wide-belt sander to your equipment lineup.

Fitted with a high-powered 10 HP motor, the sander turns out top quality, consistently smooth workpieces so you can meet every deadline.

Special options on this 37" wide-belt sander include a platen for uniform results, user-friendly touch-screen controls, thickness sensor, clear side window, and interior lighting.

This sander is equipped to boost your daily shop efficiency, whether your focus is achieving a high-quality finish on custom furniture, sanding architectural millwork, or preparing wide planks for flooring.

FEATURES & BENEFITS:

• A platen offers even pressure for fine sanding with a smooth finish
• Touch-screen controls for motors, sanding drum, conveyor, and table elevation
• Material thickness sensor provides a baseline reading and is touch-screen adjustable in increments of 0.005"
• Plexiglass side window and interior lights for easy viewing of sanding belt tracking
• Variable-speed feed conveyor for adaptability and optimal sanding results
• Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
• Amp/load meter to prevent excessive loads while maximizing machine capacity
• Built-in air regulator/water separator to protect pneumatic components
• Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
• Disc brake, emergency stop bar, and stop switch for optimal safety

SPECIFICATIONS:

• Main motor: 10 HP, 220V, single-phase, 50A
• Conveyor feed motor: 1 HP, 7A
• Table elevation motor: 1/3 HP, 3A
• Maximum board width: 36-1/2"
• Maximum board thickness: 6"
• Minimum board length: 14"
• Minimum board thickness: 1/8"
• Conveyor speed: 15-49 FPM
• Sanding belt speed: 2565 FPM
• Sanding belt size: 37" x 60"
• Sanding belt oscillations: 35-40 OPM
• Platen type: 2-1/4" x 37-3/4" Adjustable graphite pad
• Air requirement: 75 PSI
• Footprint: 51" x 19"
• Overall dimensions: 53" W x 50" D x 66" H
• Approximate shipping weight: 1808 lbs.

Simplify high-volume sanding by adding this feature-packed 37" 10 HP wide-belt sander to your shop today.

Our U.S.-based Technical Documentation Department produces detailed owner's manuals and instruction sheets, empowering your team to optimize equipment performance and minimize downtime.

Comprehensive U.S.-Based Support:

Our experts provide a full range of support services including troubleshooting, maintenance tips, and parts sourcing. The 1-year warranty on the G0409 safeguards your investment, offering peace of mind and ensuring long-term reliability.

Made in an ISO 9001 factory
