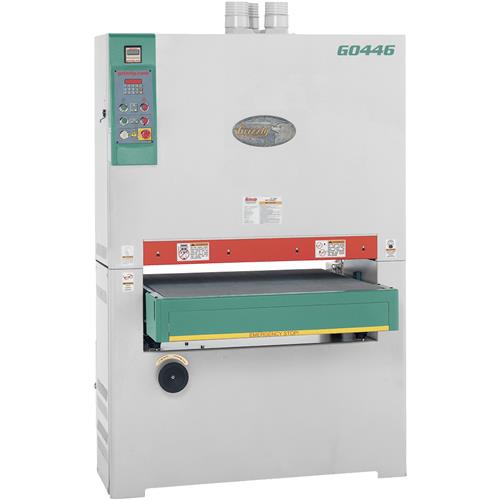

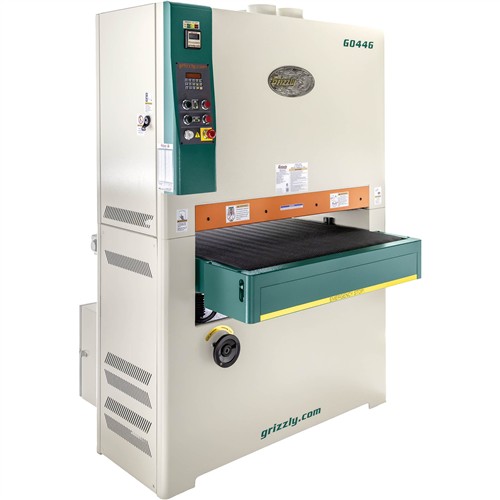

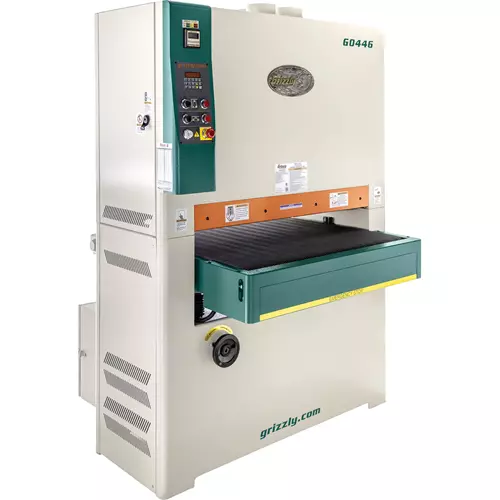

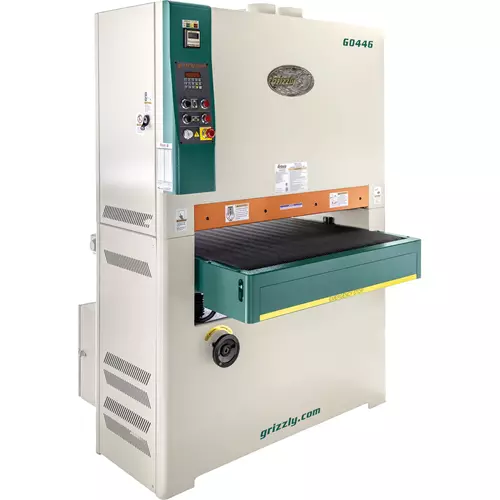

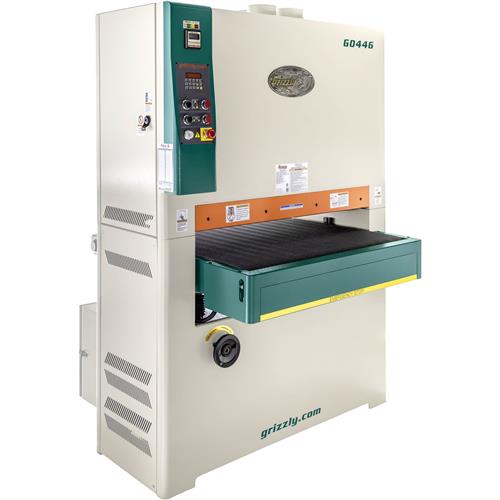

G0446 37" 15 HP 3-Phase Platen Type Wide-Belt Sander
We sell more wide-belt sanders than just about any company in the USA!
Filling in the gap between the popular 25" and 43" wide-belt sanders, the G0446 37" 15 HP 3-Phase Platen Type Wide-Belt Sander offers professional sanding results and unmatched accuracy at an unbeatable value.
State-of-the-art digital controls, a micro-adjustable graphite/felt platen, and three super-efficient dust collection ports are just a few features that make these sanders a joy to use.
The sandpaper length needed is 37" wide by 75" long. A full range of replacement paper is available.
If you are looking for the best that money can buy, Grizzly Wide-Belt Sanders have been designed and priced just for you!
The G0446 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
Made in an ISO 9001 factory
CSA certified
*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
SPECIFICATIONS:
- Sanding motor HP: 15 HP, 220V/440V (prewired 220V), 3-phase, 36A/18A
- Conveyor motor HP: 1 HP, 3.4A
- Table lift motor HP: 1/4 HP, 1.2A
- Minimum circuit size: 50A @ 220V, 30A @ 440V
- Maximum board width: 36-1/2"
- Maximum board thickness: 6"
- Minimum board length: 9"
- Minimum board thickness: 1/8"
- Front drum surface speed: 2600 FPM
- Conveyor speed: 15–49 FPM
- Air requirement: 57–75 PSI, 7 CFM
- Sanding belt size: 37" x 75"
- Footprint: 19" x 51-1/2"
- Overall dimensions: 56-1/2" W x 52" D x 77-1/2"
- Approximate shipping weight: 1887 lbs.
FEATURES:
- Built in air filter/lubricator
- Independent motor control
- Pneumatic belt tracking and tensioning
- Amp meter for load measurement
- Safety shut-off bar
- Digital readout and control panel
- (3) 5" dust ports
- Steel cabinet
- Rubber infeed drum
- Steel outfeed drum
- Rubber pressure drums
- Micro-adjustable graphite/felt platen
- 1-year limited warranty
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
