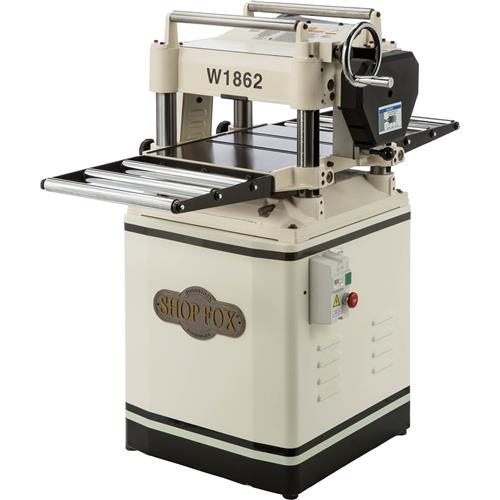

W1862 Shop Fox 15" 3 HP Planer

Produced in a factory renowned for innovation and dependability, this 15" Planer with a three-knife cutterhead has all the features you’d expect in a top-quality planer, but at a surprisingly affordable price.

Standard features include two-speed gear box with oil-bathed gears, magnetic switch with overload protection, precision-ground bed with bed rollers, board return rollers, and 4 heavy-duty support columns with dual table locks for rigid and accurate performance.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum stock thickness: 3/16"
• Minimum stock length: 8"
• Maximum depth of cut full width: 3/32"
• Maximum depth of cut 6" wide board: 1/8"
• Feed rate: 16 FPM & 28 FPM
• Cutterhead diameter: 3"
• Knives: 3 HSS (15" x 1" x 1/8")
• Cutterhead speed: 5000 RPM
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size: 15" x 20"
• Approximate shipping weight: 541 lbs.

FEATURES:

• Two-year warranty!!
• Precision-ground cast-iron table
• Ball bearing infeed and outfeed extension rollers
• Magnetic switch overload protection
• Locking table
• 4" Dust port
• Triple V-belt driven cutterhead
• 2-Speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• CSA Certified
