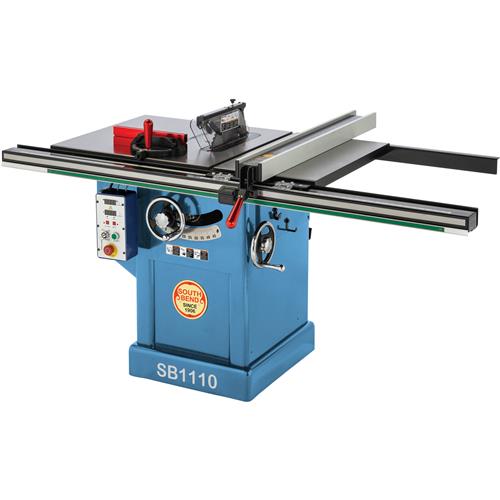

SB1110 10" 3 HP 220V Table Saw
A high-quality table saw is the most important investment you'll make as a woodworker
This high-precision South Bend SB1110 10" 3 HP table saw is solidly built with high-end components, a higher degree of accuracy, and longer-lasting reliability than any other table saw on the market.
The rip capacity of the SB1110 is 36" to the right and 18" left of the blade.
A digital readout on the fence for width of cut, and two digital readouts on the control panel for blade height and tilt allow you to set up your cuts with absolute precision every time.
The 1-1/2" thick, precision-ground cast-iron table mounted on the heavy-duty, one-piece steel cabinet minimize vibration during operation.
Additional features, such as a locking ON/OFF switch for safety, large cast-iron handwheels for easy adjustments, and large anodized handles on the miter gauge and rip fence add a professional touch.
Achieve professional results with this superb South Bend table saw.
The SB1110 is covered by a South Bend 2-year warranty covering parts and factory defects.
The SB1110 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your saw.
The South Bend Customer Service and Technical Support Teams are U.S. based. Parts may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
- Motor: 3 HP, 220V, single-phase, 13A
- Rip capacity: 36" right, 18" left of blade
- Max. depth of cut @ 90°: 3-1/8"
- Max. depth of cut @ 45°: 2-1/8"
- Distance from front of table to center of blade: 14-7/8"
- Floor-to-table height: 35-3/4"
- Arbor diameter: 5/8"
- Arbor speed: 4000 RPM
- Max. width of dado: 3/4"
- Dust port size: 4"
- Table size with extensions: 45-1/4" W x 27" D
- Cabinet footprint: 22" x 24"
- Overall dimensions: 75" W x 47" D x 43-1/2" H
- Approximate shipping weight: 607 lbs.
- Digital readouts for blade height, blade angle and distance of fence to left or right side of blade
- Precision-ground cast-iron table with beveled edge
- Smooth and quiet poly V-belt drive
- Locking power ON/OFF switch with key
- One-piece steel cabinet
- Angled dust chute in cabinet and built-in dust port for efficient dust collection and cleaning
- Large cast-iron handwheels
- Anodized handles on miter gauge and rip fence
- Hinged motor cover
- Two 3/4" miter slots in table
- US based customer service and technical support
