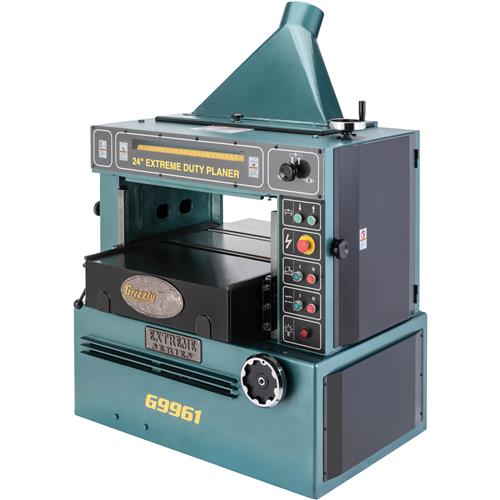

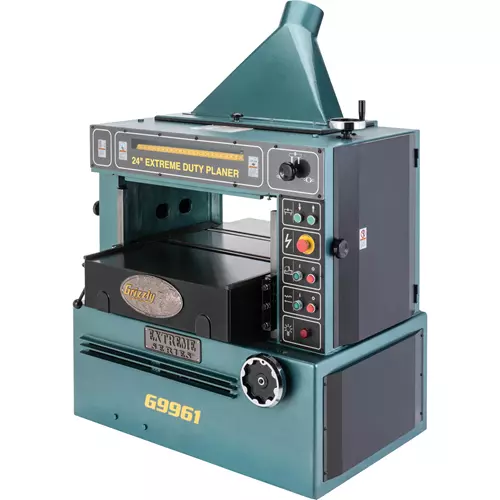

G9961 24" 10 HP 3-Phase Industrial Planer w/ Spiral Cutterhead

Complete extended production runs with this extreme-duty planer.

The G9961 24" 10 HP 3-Phase Industrial Planer features a 6-row spiral cutterhead with 160 indexable carbide inserts.

The variable-speed feed rate of 20 to 40 feet per minute means you can get the best possible finish.

The G9961 has motorized table elevation and the bed rollers on this machine are also power driven and adjustable for height when milling rough-cut lumber.

The built-in chip deflector leads directly into the dust hood with a 5" dust port to help ensure the work area stays as clear as possible.

SPECIFICATIONS:

• Cutterhead motor: 10 HP, 220V, 3-phase, 25A
• Table elevation motor: 1/2 HP
• Maximum stock width: 24"
• Maximum stock thickness: 9"
• Minimum stock thickness: 1/4"
• Minimum stock length: 10-1/2"
• Maximum cutting depth: 1/16"
• Cutterhead diameter: 4-5/8"
• Cutterhead type: 6-Row spiral with 160 inserts
• Insert size, type: 14 x 14 x 2mm, indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: Variable, 20–40 FPM
• Table size: 24" x 35-1/2"
• Dust port size: 5"
• Footprint: 30" x 40-1/2"
• Overall dimensions: 42-3/8" W x 36" D x 58" H
• Approximate shipping weight: 1980 lbs.

FEATURES:

• Motorized table elevation with micro-adjust handwheel
• Variable-speed feed
• Twin V-belt drive (cutterhead), chain drive (feed & elevation)
• Massive 6" thick precision-ground cast-iron table with bed rollers
• Segmented chip breaker and feed rollers
• Convenient control panel with magnetic switch protection
• Table height lock
• Inch and metric measuring scale

Made in an ISO 9001 factory

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G9961 comes with a 1-year warranty.
