Item# W1754H Model# W1754H

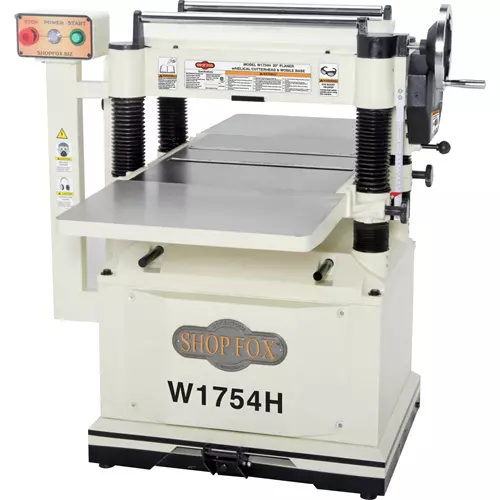

Shop Fox W1754H - 20" Planer with Built in Mobile Base and Helical Cutterhead

20" Planer with Built in Mobile Base and Helical Cutterhead-img-0
20" Planer with Built in Mobile Base and Helical Cutterhead-img-1
20" Planer with Built in Mobile Base and Helical Cutterhead-img-2
20" Planer with Built in Mobile Base and Helical Cutterhead-img-3
20" Planer with Built in Mobile Base and Helical Cutterhead-img-4
20" Planer with Built in Mobile Base and Helical Cutterhead-img-5
20" Planer with Built in Mobile Base and Helical Cutterhead-img-6
20" Planer with Built in Mobile Base and Helical Cutterhead-img-7
20" Planer with Built in Mobile Base and Helical Cutterhead-img-8
20" Planer with Built in Mobile Base and Helical Cutterhead-img-9
20" Planer with Built in Mobile Base and Helical Cutterhead-img-10
20" Planer with Built in Mobile Base and Helical Cutterhead-img-11
$4,499.99
+$369.00 Freight
+$0.00  Oversize
  • Motor: 5 HP
  • Max cutting width: 20 in.
  • Max cutting height: 8 in.
  • Cutter Head Type: Helical
  • Cutter Head Diameter: 3 in.
  • Min Stock Length: 8 in.
  • Feed Rate(s): 16, 20 FPM
  • Table size: 25-3/4 in. x 20 in.
  • Shipping weight: 924 lbs.

Hover to View Details

Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

W1754H 20" Planer with Built in Mobile Base and Helical Cutterhead

Save time and effort by quickly flattening and smoothing rough lumber.

A planer can help enhance the quality of woodworking projects by producing smooth, even surfaces, making pieces easier to work with, and giving them a professional finish.

The 20", 5-row helical cutterhead comes complete with 100 indexable carbide inserts that can each be rotated three times to expose new, sharp cutting edges.

The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.

A 240-volt, 5 horsepower motor powers through cuts up to 1/8" deep at a full width or 6" wide!

The 2-speed gearbox allows you to choose between 16 and 20 FPM for a smooth finish or a higher production feed rate.

With its built-in locking mobile base and pedestal-mounted switch, the W1754H is easy to move and operate.

Additional features include a 55-5/8" long precision-ground cast-iron table with the cast-iron extension wings, return rollers, adjustable bed rollers, and a magnetic switch with thermal overload protection.

Like all Shop Fox planers, the W1754H comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1754H manual was written by our U.S.-based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

The Customer Service and Technical Support Teams are also U.S.-based. Parts for the planer may be available online and shipped from the parts warehouse in Springfield, MO.

CSA certified

SPECIFICATIONS:

  • Motor: 5 HP, 240V, single-phase, 19A
  • Maximum cutting width: 20"
  • Maximum cutting height: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Cutterhead type: 5-row helical, 100 inserts
  • Cutterhead speed: 4800 RPM
  • Feed rate: 16, 20 FPM
  • Table size: 20" W x 55-1/2" L
  • Overall dimensions: 43-1/2" W x 55-1/2" D x 45-7/8" H
  • Approximate shipping weight: 924 lbs.

FEATURES:

  • Helical cutterhead
  • Built-in mobile base
  • Inch and metric measurement scale
  • Chip breaker and pressure bar
  • 0.059" Table movement distance per handwheel revolution
  • Precision-ground cast-iron wings
  • Top-mounted board return rollers
  • Four column support with table locks
  • Two-speed automatic board feed
  • Pedestal mounted magnetic safety switch with thermal protection
  • Two adjustable bed rollers
