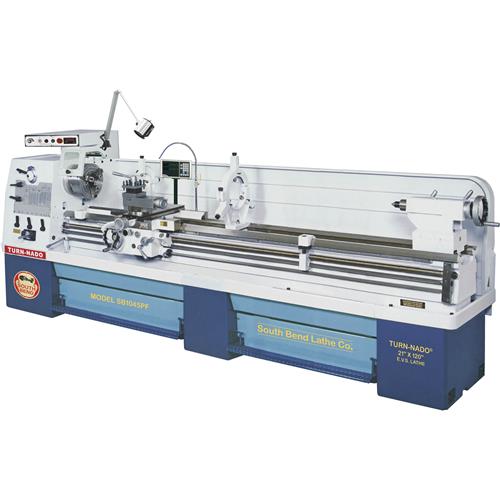

SB1045PF 21" x 120" Turn-Nado EVS Lathe with DRO

The EVS (electronic variable-speed) spindle speed of the SB1045PF 21" x 120" Turn-Nado EVS Lathe allows for dialing in the perfect cutting speed.

A factory-installed Fagor digital readout displays the positioning of the carriage and cross slide.

The spindle speed dial fine tunes the exact speed within the selected range between 18-1800 RPM.

Spindle speed is displayed on the digital readout conveniently located on the control panel.

The spindles are D1-8 camlock with an MT#7 taper and 3.15" bore. The tailstocks have an MT#5 taper and 6-1/2" of quill travel.

Both the carriage and cross slide have power feed capability when the carriage is engaged with the feed rod.

The headstocks are equipped with a pressurized oiling system that lubricates the bearings and gears before the spindle starts.

The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.

To reduce the time spent doing daily lubrication, this lathe is outfitted with an one-shot lubrication system that is as quick and easy as one pump of a lever.

And finally, this lathe comes with a circulating coolant system.

The SB1045PF manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The easy-to-read manual provides full instructions on how to maintain your lathe.

Like all South Bend lathes, the SB1045PF comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Spindle motor: 12-1/2 HP, 440V, 3-phase, 18A
• Coolant pump motor: 1/8 HP, 0.23A
• Oil pump motor: 1/4 HP, 0.6A
• Distance between centers: 120"
• Swing over bed: 21"
• Swing over cross slide: 14"
• Width of bed: 13.58"
• Cross slide travel: 11"
• Compound slide travel: 5.39"
• Spindle nose: D1-8 camlock
• Spindle taper: MT #7
• Spindle speed: Variable, 18–1800 RPM
• Tailstock taper: MT #5
• Tailstock travel: 6-1/2"
• Inch thread range: 2 to 72 TPI (38 pitches)
• Metric thread range: 0.4 to 14 mm (40 pitches)
• Modular threads: 0.3 to 3.5 (18 pitches)
• Diametral threads: 8 to 44 (21 pitches)
• Longitudinal feeds: 0.0015 to 0.0400 IPR (15)
• Cross feeds: 0.001 to 0.034 IPR (15)
• Overall dimensions: 169-3/4" W x 27" D x 62-1/4" H
• Approximate shipping weight: 7202 lbs.

FEATURES:

• Fagor 2-axis DRO
• Meehanite® castings
• Allen-Bradley® controls
• Yaskawa Inverter
• 12" 3-Jaw scroll chuck
• 14" 4-Jaw independent chuck D1-8
• 14" Faceplate
• U.S.-based customer service and technical support

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
