Item# G0602 Model# G0602

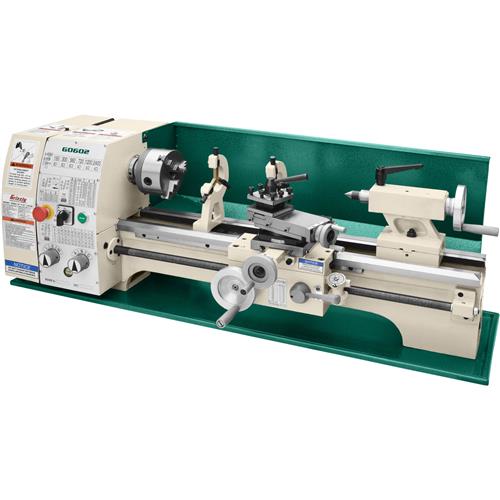

Grizzly G0602 - 10" x 22" Benchtop Metal Lathe

10" x 22" Benchtop Metal Lathe-img-0
10" x 22" Benchtop Metal Lathe-img-1
10" x 22" Benchtop Metal Lathe-img-2
10" x 22" Benchtop Metal Lathe-img-3
10" x 22" Benchtop Metal Lathe-img-4
10" x 22" Benchtop Metal Lathe-img-5
$1,550.00
+$129.00 Freight
+$0.00  Oversize
  • Motor: 1 HP Single-Phase
  • Swing: 9-1/2"
  • Distance between centers: 22"
  • Spindle bore: 25 mm
  • Spindle type: Threaded
  • Speeds: 150 – 2400 RPM
  • Tailstock taper: MT#3
  • Tailstock barrel travel: 2-1/2"
  • Shipping weight: 432 lbs.

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Videos
Overview

G0602 10" x 22" Benchtop Metal Lathe

The Grizzly G0602 Benchtop Metal Lathe is the perfect size for garage or workshop at 10" x 22". It features a 25mm spindle bore, 1-3/4"- 8 TPI MT#4 headstock and an 1-1/4" MT#3 tailstock.

The 1 HP motor powers the spindle through six speeds from 150-2400 RPM.

This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate cuts and finishes. This Benchtop Metal Lathe will cut only right-hand threads.

The G0602 includes other exceptional equipment you’ll need to get up and running including: the hardened and precision-ground V-ways, 5" 3-Jaw chuck with two sets of jaws, 6-1/2" 4-jaw chuck with reversible jaws, 8" faceplate and 4-way tool post.

The G0602 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0602 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your lathe.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the lathe are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 1 HP, 110V, single-phase, 13.6A
  • Swing over bed: 9-1/2"
  • Swing over cross slide: 6-1/8"
  • Swing over saddle: 6-1/8"
  • Distance between centers: 22"
  • Bed width: 6-1/8"
  • Spindle bore: 25mm
  • Spindle type: Threaded, 1-3/4" x 8 TPI
  • Spindle taper: MT#4
  • Tailstock taper: MT#3
  • Tailstock quill travel: 2-1/2"
  • Cross slide travel: 6-1/2"
  • Compound travel: 3-1/2"
  • Maximum tool bit size: 1/2"
  • Spindle speeds: (6) 150–2400 RPM
  • Leadscrew: 3/4" x 12 TPI
  • Longitudinal feeds: (9) 0.0025, 0.0140 in./rev.
  • Inch thread range: (31) 8–72 TPI
  • Metric thread range: (26) 0.25–3.50mm
  • Footprint: 12-1/2" x 47-1/2"
  • Overall dimensions: 46" W x 22" D x 21" H
  • Approximate shipping weight: 432 lbs.

FEATURES:

  • Hardened and ground V-ways
  • Thread dial
  • Spindle reversing switch
  • Inch/metric dials
  • Emergency stop button
  • Quick-locking tailstock
  • Enclosed oil-bath gearbox
  • Chip tray and backsplash guard

INCLUDES:

  • 5" 3-jaw scroll chuck with two sets of jaws
  • 6-1/2" 4-jaw independent chuck with reversible jaws
  • 8"faceplate
  • 4-way turret tool post
  • MT#3 dead center
  • MT#4 dead center
  • Set of change gears
  • Follow rest
  • Steady rest
  • Bottle for oil
  • Tool box with service tools
