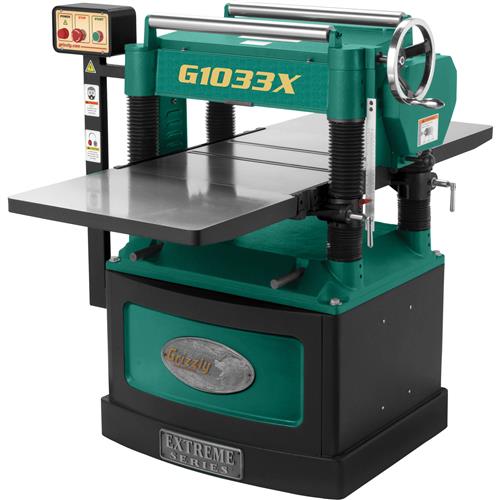

G1033X 20" 5 HP Helical Cutterhead Planer

A production-level planer to handle your toughest everyday use.

We took our G1033Z 20" 5 HP Planer and made it better by including a helical cutterhead.

This planer is designed for heavy-duty use and can process large volumes of wood quickly and accurately.

The inserts on the 4-row helical cutterhead sit at a slight angle to the workpiece for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels. The 92 indexable carbide inserts can each be rotated three times to expose new, sharp cutting edges.

The solid cast-iron, extension tables make the total planer bed length just short of 5' long! They are precision-ground to a mirror-like finish for ultra-smooth lumber feeding.

The adjustable bed rollers keep the planer feeding smoothly. The feed rollers are driven by a two-speed gearbox at 16 FPM or 28 FPM.

The G1033X incorporates a safety magnetic switch for overload and power failure protection. The power controls are mounted on an attached pedestal for easy access.

The power is transferred from the 5 HP motor to the cutterhead by a triple v-belt design. This ensures maximum power connection between the cutterhead and the feed drive.

The G1033X manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Made in an ISO 9001 factory

CSA certified

Note on replacement inserts:

• For models manufactured July 2007 and later, use H9893 (92) 15mm x 15mm x 2.5mm replacement inserts.*
• For models manufactured June 2007 and earlier, use H7319 (96) 14mm x 14mm x 2.0mm replacement inserts.*

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 23A
• Maximum stock width: 20"
• Maximum stock thickness: 8"
• Minimum stock thickness: 1/4"
• Minimum stock length: 7"
• Maximum cutting depth full width: 5/64"
• Cutterhead diameter: 3-1/4"
• Cutterhead type: 4-row helical, 92 inserts
• Insert size, type: 15mm x 15mm x 2.5mm, 30° indexable carbide
• Cutterhead speed: 5000 RPM
• Feed rate: 16, 28 FPM
• Table size: 20" x 56"
• Dust port size: 5"
• Footprint: 22" x 28"
• Overall dimensions: 39" W x 56" D x 41" H
• Approximate shipping weight: 811 lbs.

FEATURES:

• Heavy-duty, ball bearing board return rollers
• Pedestal-mounted control panel
• Adjustable bed rollers
• 4-column support with table locks
• Precision-ground, cast-iron table, and extension wings
• Anti-kickback fingers

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.
