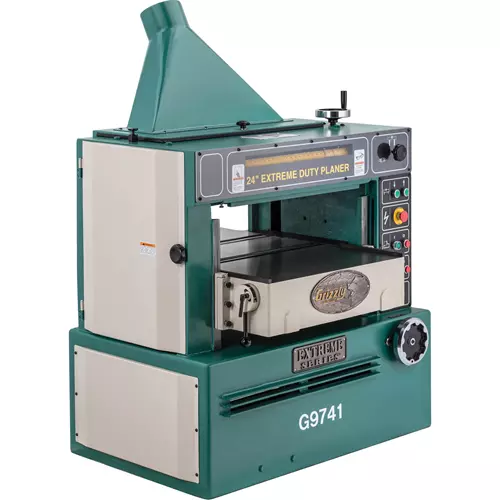

G9741 24" 10 HP 3-Phase Extreme-Duty Planer

The 10 HP "big daddy" in our line of extreme-duty planers!

The G9741 24" 10 HP 3-Phase Extreme-Duty Planer has all the features one would expect of an industrial machine this big. It has segmented chip breakers to improve chip control and to reduce cutting resistance, variable-speed feed and motorized table elevation. The bed rollers on this machine are also power driven and adjustable for height when milling rough-cut lumber.

The G9741 features a 4-knife cutterhead, an inch and metric measuring scale and variable-speed feed rate of 20–40 feet per minute, so you can dial in for the best possible finish.

The HSS knives (high-speed steel) have been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The weight of the massive 6" thick, precision-ground cast-iron table will minimize vibration and ensure straight cuts.

Better believe this machine can hold up to the most strenuous production runs.

The G9741 manual was written by our U.S.-based Documentation Department is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

Made in an ISO 9001 factory

*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.

SPECIFICATIONS:

• Motor: 10 HP, 220V/440V* (prewired 220V), 3-phase, 30A/15A
• Table elevation motor: 1/2 HP, 2A
• Feed motor: 1 HP, 4A
• Minimum circuit size: 40A @ 220V, 20A @ 440V
• Maximum stock width: 24"
• Maximum cut height: 9"
• Minimum stock length: 10-1/2"
• Minimum stock thickness: 1/4"
• Maximum stock thickness: 9"
• Maximum cutting depth: 1/8"
• Cutterhead speed: 5000 RPM
• Feed rate: Variable, 20–40 FPM
• Cutterhead type: 4-knife
• Cutterhead diameter: 4-5/8"
• Knife size and type: 24-1/8" x 1-3/16" x 1/8", HSS
• Table size: 24" x 35-1/2"
• Dust port size: 5"
• Footprint: 30" x 40-1/2"
• Overall dimensions: 42-3/8" W x 36" D x 58" H
• Approximate shipping weight: 1935 lbs.

FEATURES:

• Twin V-belt drive (cutterhead), chain drive (feed and elevation)
• Motorized table elevation with micro-adjust handwheel
• Inch and metric measuring scale
• Convenient control panel with magnetic switch protection
• Massive 6" thick precision-ground cast-iron table with bed rollers
• Segmented chip breaker and feed rollers
• Variable-speed feed
• Table height lock
• 1-year limited warranty
