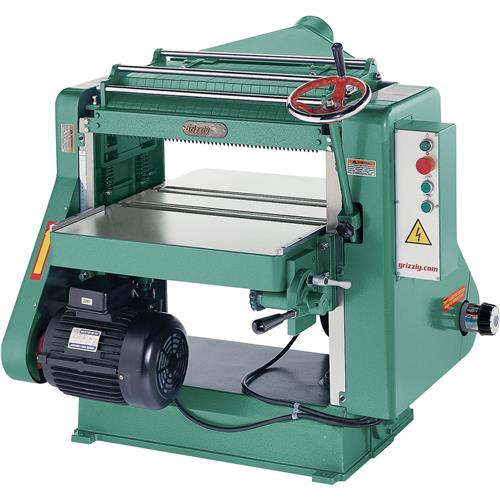

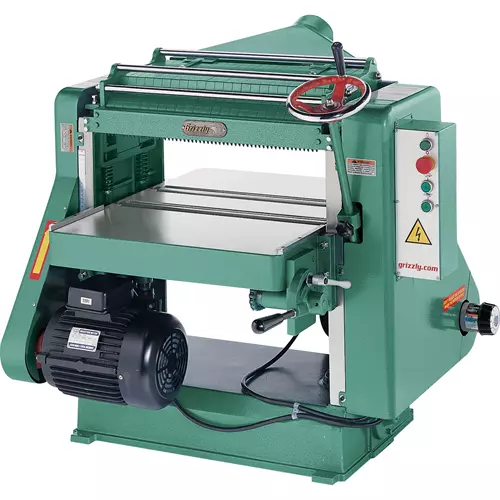

G7213Z 24" 7-1/2 HP 3-Phase Planer

Wide, solid wood panels? No problem!

Durability, dependability and capacity are the hallmarks of this massive machine.

If you’re looking for an industrial-duty planer that will outlast the building you put it in, the G7213Z 24" Planer is the one!

The 7-1/2 HP, 3-phase motor powers through the toughest hardwoods with ease as expected of any production shop.

Planing capacity is 24" thanks to the four high-speed steel knives (HSS) on the 3-1/8" cutterhead.

The HSS knives have been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The built-in chip deflector leads directly into the dust hood with a 5" dust port to help ensure the work area stays as clear as possible.

The G7213Z manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.

SPECIFICATIONS:

• Main motor: 7-1/2 HP, 220V/440V* (prewired 220V), 3-phase, 20A/10A
• Feed motor: 2 HP, 6A/3A
• Minimum circuit size: 40A @ 220V, 20A @ 440V
• Maximum stock width: 24"
• Maximum stock thickness: 7"
• Minimum stock thickness: 1/4"
• Minimum stock length: 8"
• Maximum cutting depth: 1/8"
• Cutterhead diameter: 3-1/8"
• Cutterhead type: 4-knife
• Knife size & type: 24" x 1" x 1/8", HSS, single-sided, solid
• Cutterhead speed: 5200 RPM
• Feed rate: Variable, 17–26 FPM
• Table size with extensions: 24-1/8" x 31-1/8"
• Dust port size: 5"
• Footprint: 20-1/2" x 24-1/2"
• Overall dimensions: 42" W x 40-1/2" D x 37" H
• Approx. shipping weight: 1130 lbs.

FEATURES:

• Board return rollers
• Precision-ground cast-iron table
• Grease fittings for cutterhead ball bearings
• Heavy-duty cast-iron construction throughout
• Magnetic switch with thermal overload protection
• Lever-adjustable bed rollers
• Handwheel table height adjustment
• Segmented chip breaker and infeed roller
• Finely finished steel outfeed roller
• Inch and metric scale increments
• Dust covers protect vertical support columns and leadscrews
• 1-year limited warranty
